    • 22 Drivers > The TRIAC Dimmable Range Constant current

    89016UT
    89016UT
    Constant current dimmable LED driver for 200/250/300/350mA LED spots / LED fittings.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    CE

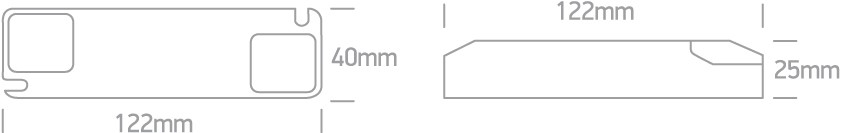

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    22 Drivers
    Family
    The TRIAC Dimmable Range Constant current
    Order Code
    89016UT
    Material
    Plastic
    Shape
    Rectangular
    Length
    122mm
    Width
    41mm
    Height
    23mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    Refer to Table
    Power Factor
    >0,9
    Constant Current
    Yes
    200mA
    26-42V
    250mA
    26-42V
    300mA
    26-42V
    350mA
    26-42V
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac
    Ambient Temp
    50ºC
    Operating Temp
    85ºC
    Housing Material
    Plastic
    Output Terminal
    Cable

    Packing Info

    +
    Box Weight
    0.086kg
    Pcs/Carton
    98
    Barcode
    5291889068754
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    20
