New 2025 Edition 2 > Drivers

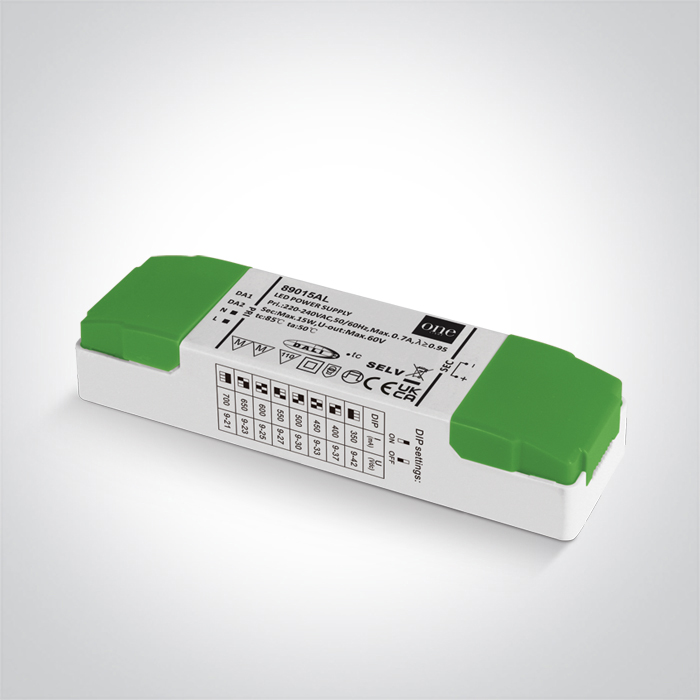

89015AL
DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings.
Adjustable output using DIP Switches. 350/400/450/500/550/600/650/700mA.
Complies with standard EN61347-1 and any other specific standards.
Adjustable output using DIP Switches. 350/400/450/500/550/600/650/700mA.
Complies with standard EN61347-1 and any other specific standards.

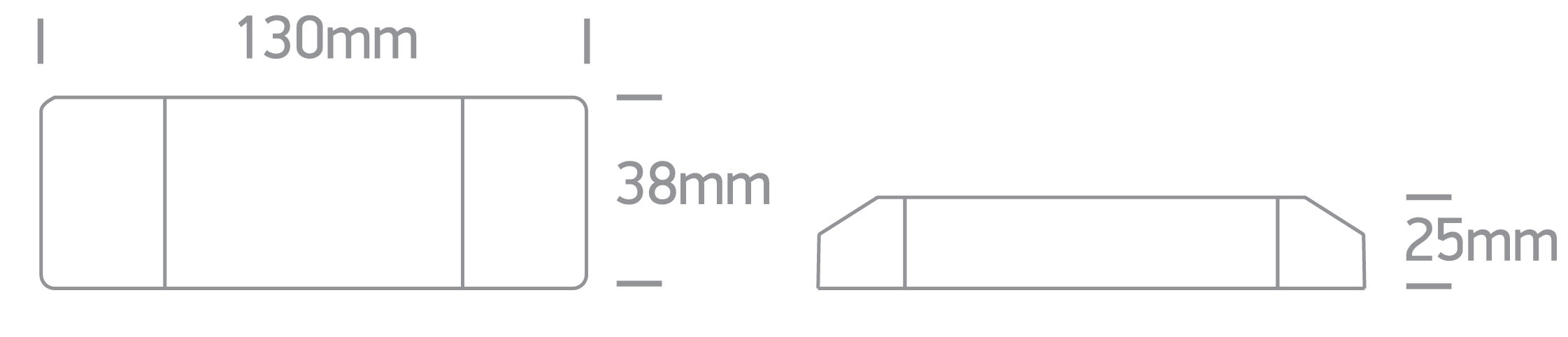

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89015AL
Material
Plastic
Shape
Rectangular
Length
130mm
Width
38mm
Height
25mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to Table
Power Factor
0,95
Constant Current
Yes
350mA
9-42V
400mA
9-37V
450mA
9-33V
500mA
9-30V
550mA
9-27V
600mA
9-25V
650mA
9-23V
700mA
9-21V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Ambient Temp
50°C
Operating Temp
85°C
Housing Material
Plastic
Fast Connector
Yes
Fast Connector Type
One Light 350+700
Packing Info
Box Weight
0.114kg
Pcs/Carton
50
Barcode
5291889080800
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
