New 2025 Edition 2 > Drivers

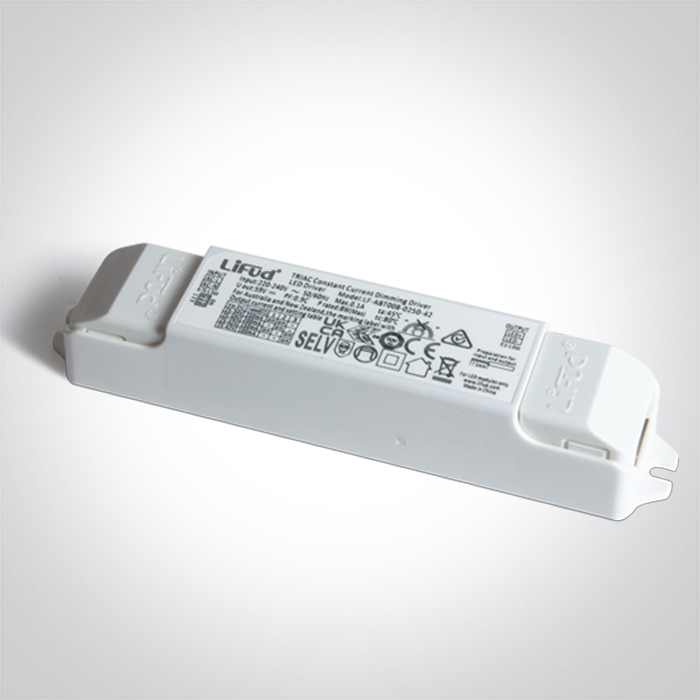

89009UT
Constant current dimmable LED driver for 100/150/200/250/300/350mA LED spots / LED fittings.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

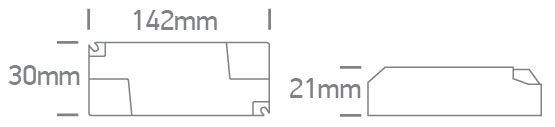

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89009UT
Material
Plastic
Shape
Rectangular
Length
142mm
Width
30mm
Height
21mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to Table
Constant Current
Yes
100mA
9-42V
150mA
9-42V
200mA
9-42V
250mA
9-33V
300mA
9-27V
350mA
9-24V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Housing Material
Plastic
Packing Info
Box Weight
0.074kg
Pcs/Carton
126
Barcode
5291889081340
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
