23 Drivers > Adjustable Constant Current DALI Dimmable Range

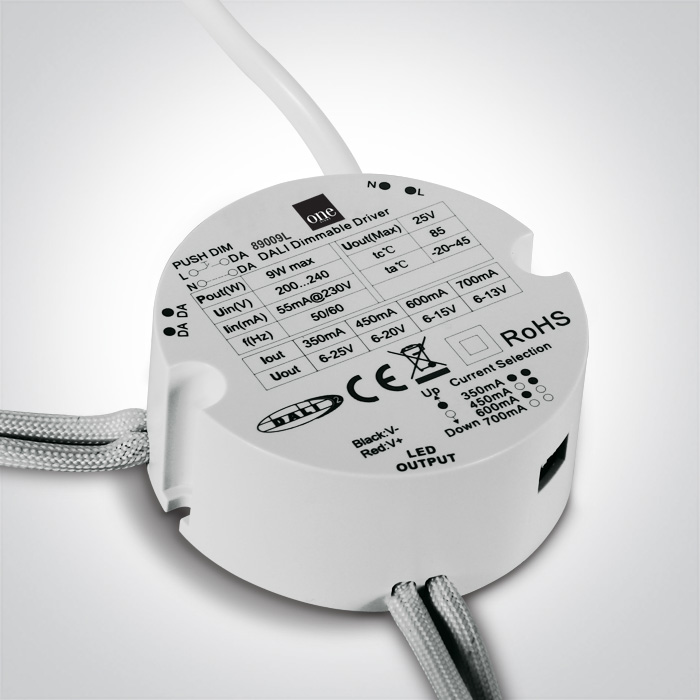

89009L
DALI & Push to DIM LED driver.
Adjustable output using DIP switches.
Complies with standard EN61347-1 and any other specific standards.
Adjustable output using DIP switches.
Complies with standard EN61347-1 and any other specific standards.

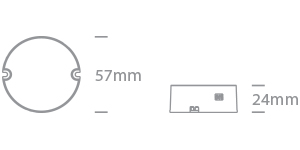

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
Adjustable Constant Current DALI Dimmable Range
Order Code
89009L
Material
Plastic
Shape
Circular
Height
24mm
Diameter
57mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to table
Power Factor
0.9
Constant Current
Yes
350mA
6-25V
450mA
6-20V
600mA
6-15V
700mA
6-13V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Housing Material
Plastic
Output Terminal
Cable
Packing Info
Box Weight
0.085kg
Pcs/Carton
100
Barcode
5291889076391
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
