    • 23 Drivers > The 700mA TRIAC Dimmable Range Constant current

    89008AT
    89008AT
    700mA Constant current Triac dimmable driver, 6-8W .

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    Quick Fix
    CE

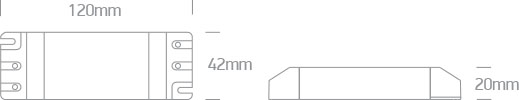

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    23 Drivers
    Family
    The 700mA TRIAC Dimmable Range Constant current
    Order Code
    89008AT
    Material
    Plastic
    Shape
    Rectangular
    Length
    120mm
    Width
    42mm
    Height
    20mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    6-8W
    Power Factor
    0,9
    Constant Current
    Yes
    700mA
    8-12V
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac
    Ambient Temp
    45°C
    Operating Temp
    80°C
    Housing Material
    Plastic
    Output Terminal
    Cable
    Fast Connector
    Yes
    Fast Connector Type
    One Light 700

    Packing Info

    +
    Box Weight
    0.095kg
    Pcs/Carton
    100
    Barcode
    5291889078418
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    23
