New 2025 Edition 2 > Drivers

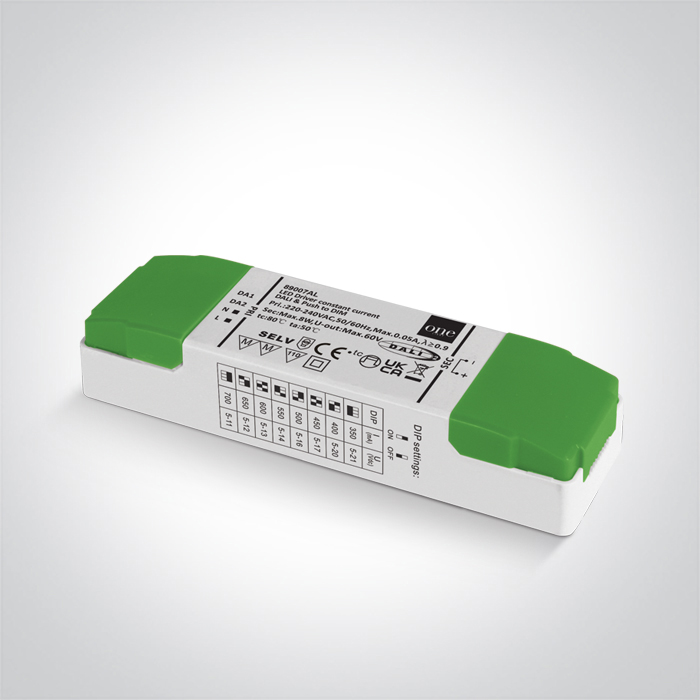

89007AL
DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings.
Adjustable output using DIP Switches. 350/400/450/500/550/600/650/700mA.
Complies with standard EN61347-1 and any other specific standards.
Adjustable output using DIP Switches. 350/400/450/500/550/600/650/700mA.
Complies with standard EN61347-1 and any other specific standards.

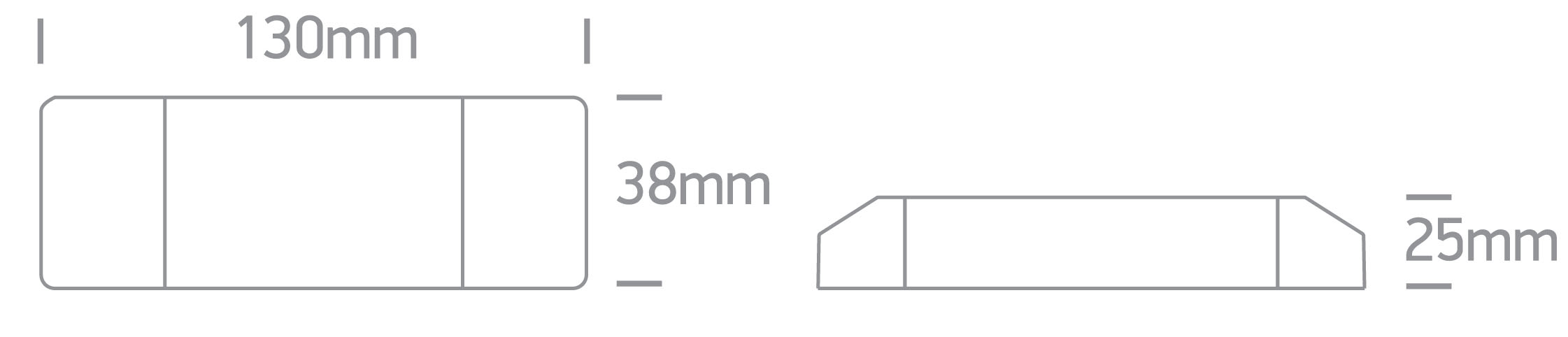

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89007AL
Material
Plastic
Shape
Rectangular
Length
130mm
Width
38mm
Height
25mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to Table
Power Factor
0,9
Constant Current
Yes
350mA
5-21V
400mA
5-20V
450mA
5-17V
500mA
5-16V
550mA
5-14V
600mA
5-13V
650mA
5-12V
700mA
5-11V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Ambient Temp
50°C
Operating Temp
80°C
Housing Material
Plastic
Fast Connector
Yes
Fast Connector Type
One Light 350+700
Packing Info
Box Weight
0.112kg
Pcs/Carton
50
Barcode
5291889080626
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
