21 Emergency Lights > MR16 LED Emergency Kit
89002A
3W Emergency LED recessed , IP20, ideal for corridors
. It can be used maintained or non-maintained mode.

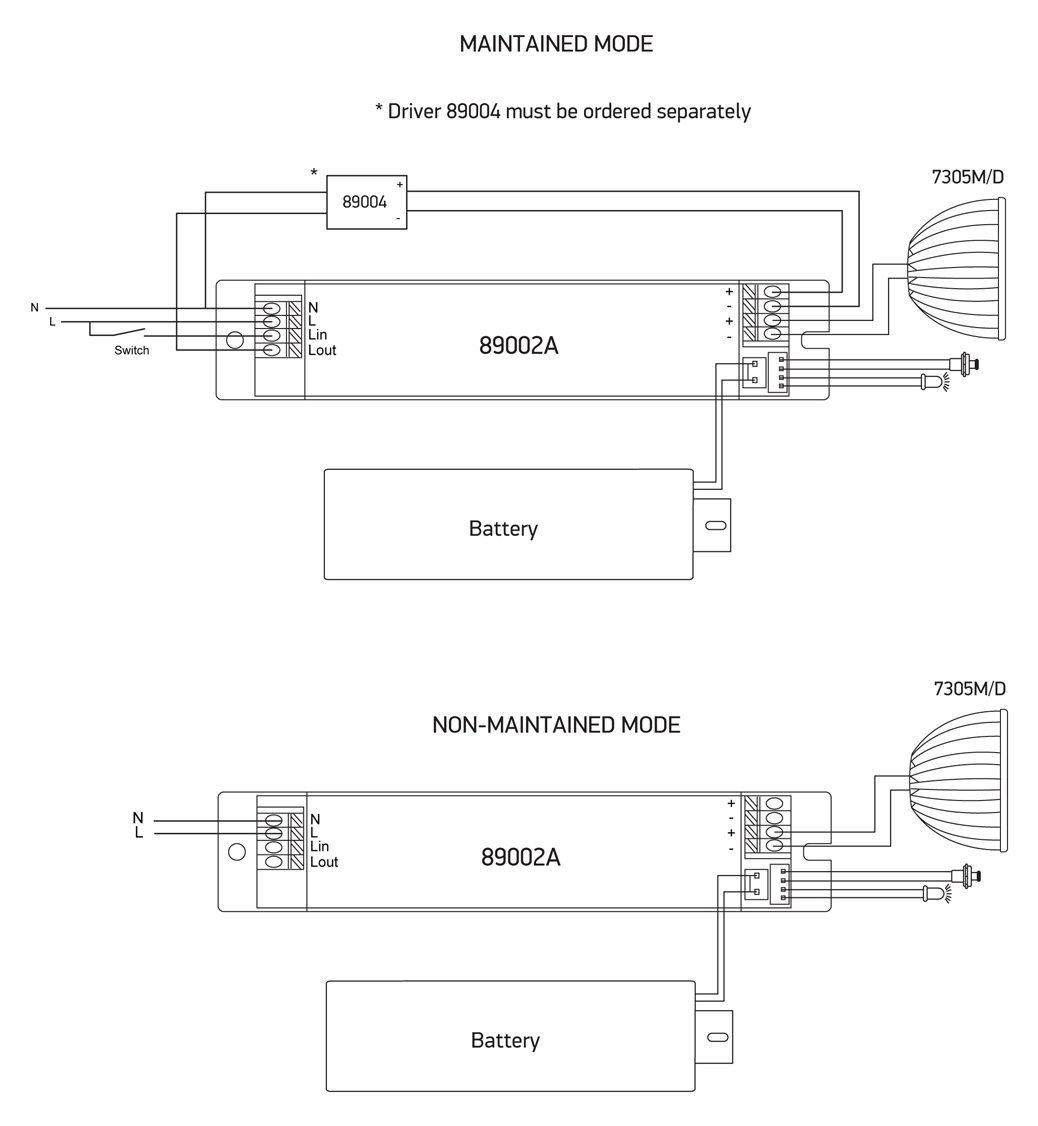

For maintained mode requires 89004 driver

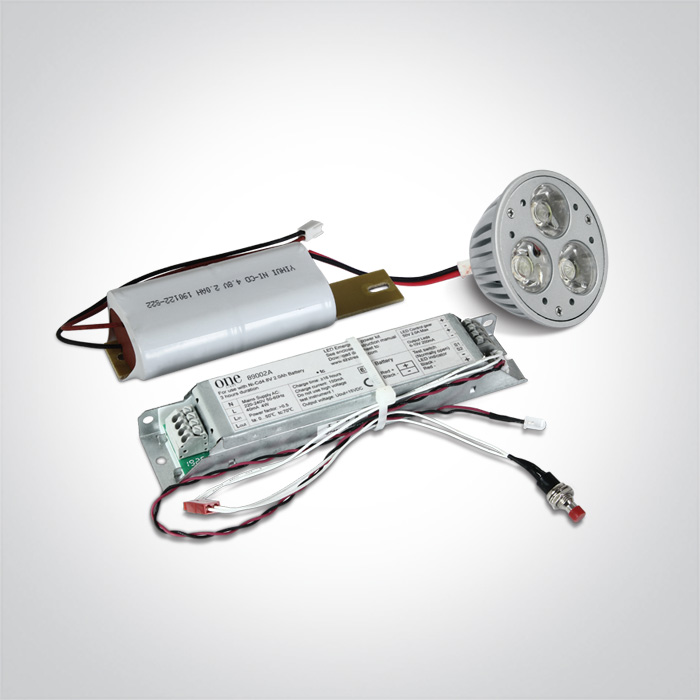

Supplier with battery & MR16 LED module 7305M/D.
Complies with standard EN60598-1 and any other specific standards.
For maintained mode requires 89004 driver
Supplier with battery & MR16 LED module 7305M/D.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
21 Emergency Lights
Family
MR16 LED Emergency Kit
Order Code
89002A
Material
Aluminium + Plastic
Shape
Rectangular
Recessed Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
F Mark
Gear
Gear Type
Emergency Kit
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Housing Material
Metal
Output Terminal
Connector
Battery Capacity
2Ah
Battery Voltage
4,8V
Operation Time
3 hours
Charging Time
24 hours
Maintained
Yes
Non Maintained
Yes
Illumination Data
Colour Temperature
6000K
Illumination Diagram
Packing Info
Box Weight
0.383kg
Pcs/Carton
24
Barcode
5291889066446
HS Code
8504408390
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
