07 Strips & Profiles > The Flex Tiles
7848/C

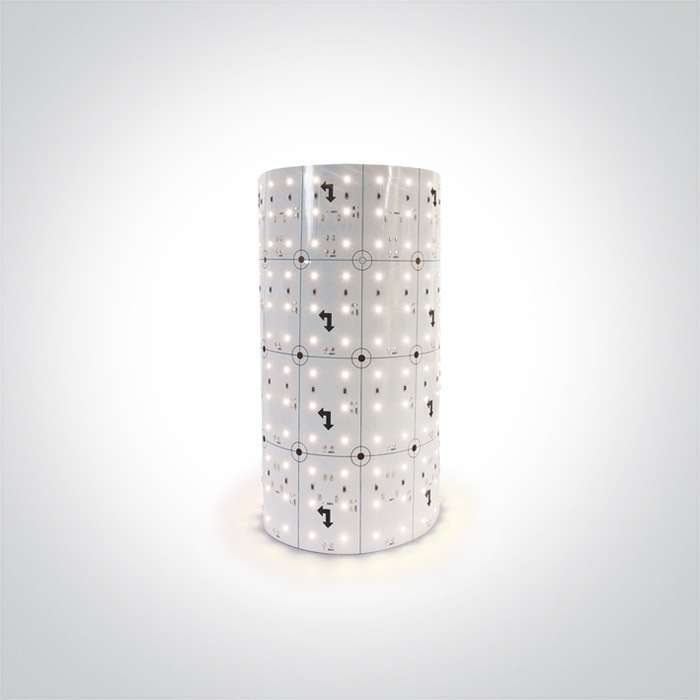

Flexible tile, 10W ideal for cover walls and columns .

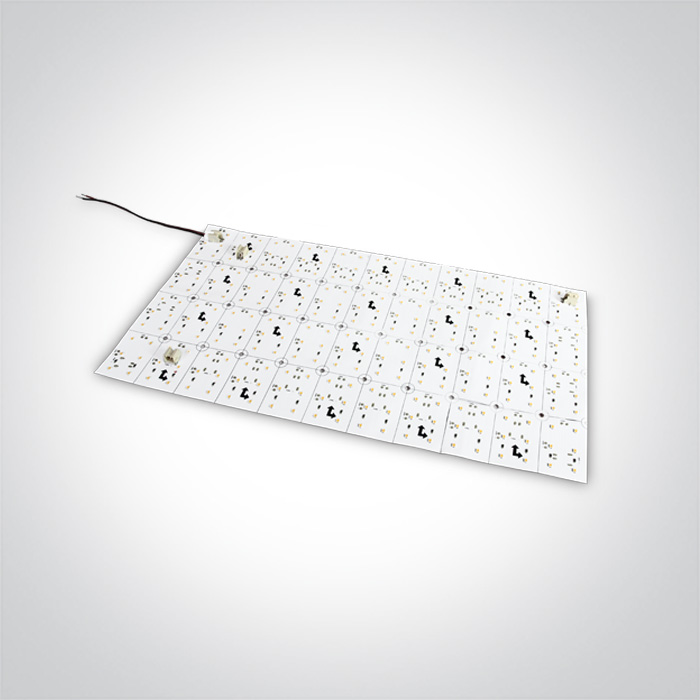

Supplied in 480mmx240mm pcs in white PCB and double adhesive tape for a better fixing.

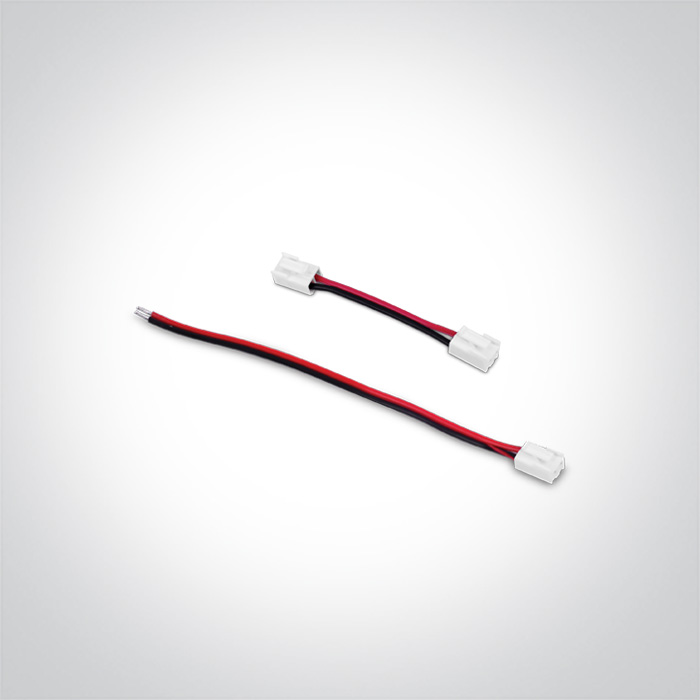

Complete with 2pcs power supply cable and 2pcs tile connectors.
Connect max up to 10pcs with one driver.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 480mmx240mm pcs in white PCB and double adhesive tape for a better fixing.
Complete with 2pcs power supply cable and 2pcs tile connectors.
Connect max up to 10pcs with one driver.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
07 Strips & Profiles
Family
The Flex Tiles
Order Code
7848/C
Shape
Rectangular
Length
480mm
Width
240mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Number
288LEDs/pc
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
900lm
Light Efficiency
90lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.345kg
Pcs/Carton
2
Barcode
5291889071341
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
