New 2025 Edition 2 > Strips & Profiles
7846/RGBW
RGBW COB LED strip, 840LEDs/m, 18W/meter.
Supplied in 5 meters roll with 3M double face adhesive tape.

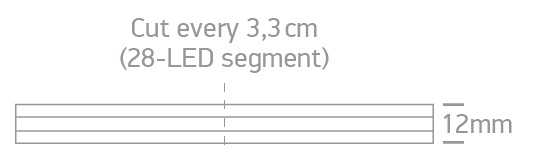

Can be cut every 3,3cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 3,3cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Strips & Profiles
Order Code
7846/RGBW
Shape
Rectangular
Length
5000mm
Width
12mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
RGB 12W/m + WW 6W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Illumination Data
Colour Temperature
RGB+3000K
Lumen Output
500lm/m (3000K)
Illumination Diagram
Packing Info
Box Weight
0.234kg
Pcs/Carton
50
Barcode
5291889081388
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
