New 2025 Edition 3 > Strips & Profiles

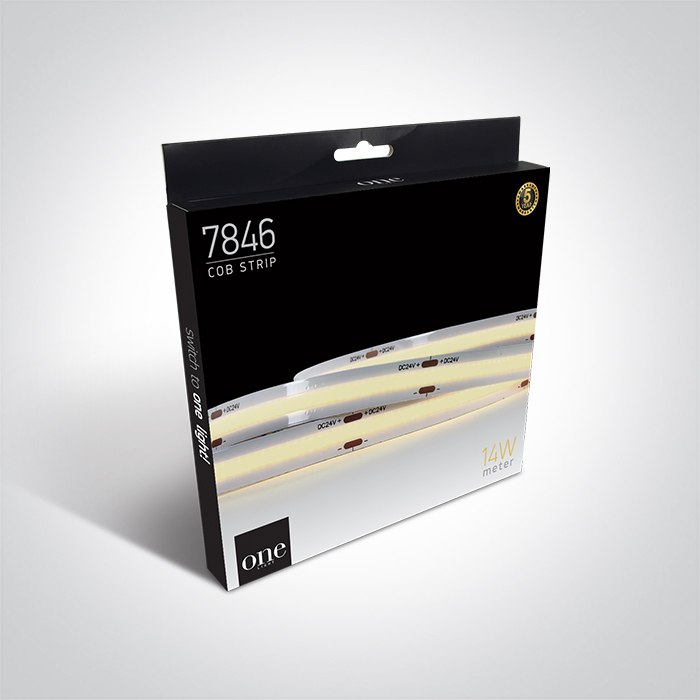

7846H/C
Flexible COB LED light strip, 480LEDs/meter, 14.5W/meter.
Supplied in 5 meters roll with 3M double face adhesive tape.

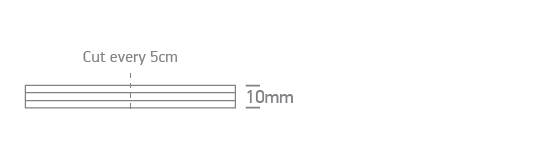

Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Strips & Profiles
Order Code
7846H/C
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
14,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
2175lm/m
Light Efficiency
150lm/W
CRI
90
Illumination Diagram
Packing Info
Pcs/Carton
50
Barcode
5291889088257
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
