07 Strips & Profiles > The Variable Colour Temperature Range
7846/DEW

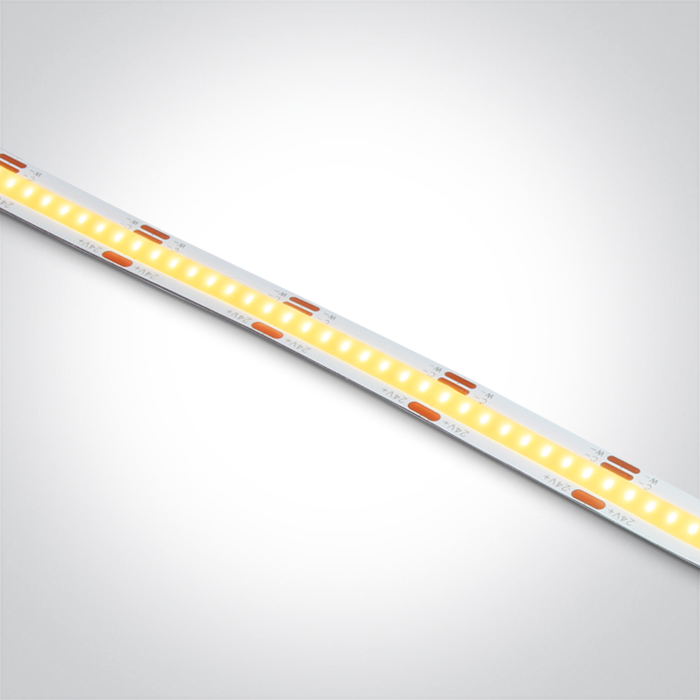

Variable colour temperature COB LED light strip, 608LEDs/meter, 14W/meter.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 2,63cm (16-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 2,63cm (16-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

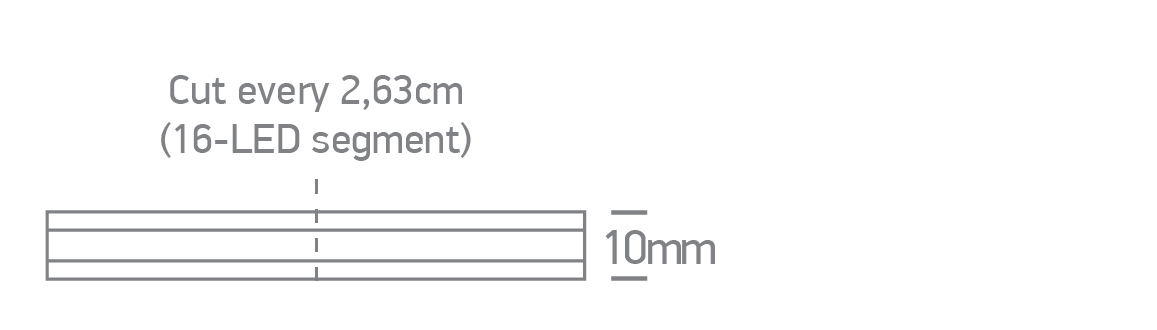

Dimensions
Downloads
Physical Specification
Item Group
07 Strips & Profiles
Family
The Variable Colour Temperature Range
Order Code
7846/DEW
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
14W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Number
608Leds/m
Illumination Data
Colour Temperature
2700K-6500K
Lumen Output
630lm/m + 770lm/m
Light Efficiency
100lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.234kg
Pcs/Carton
50
Barcode
5291889088356
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
