08 Strips & Profiles > The Ultra Slim Range 24V
7823/W

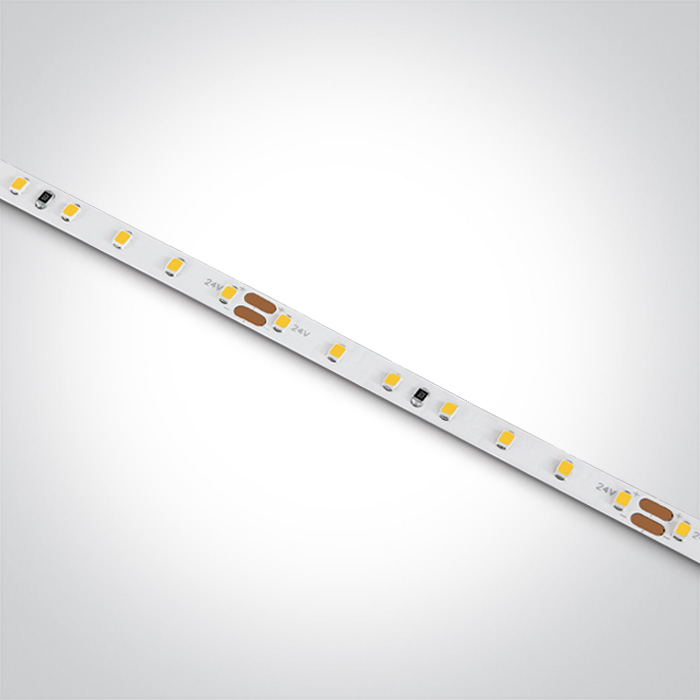

Slim Flexible LED light strip, with SMD2216 LEDs, 140LEDs/meter, 9,6W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.

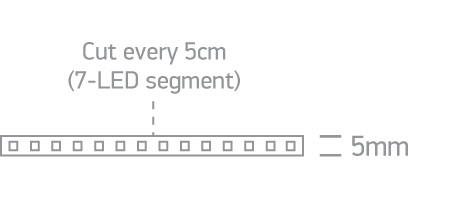

Can be cut every 5cm (7-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 5cm (7-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The Ultra Slim Range 24V
Order Code
7823/W
Shape
Rectangular
Length
5m
Width
5mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
9,6W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2216
LED Brand
Refond
LED Number
140Leds/m
Illumination Data
Colour Temperature
3000K
Lumen Output
864lm/m
Light Efficiency
90lm/W
CRI
90
Illumination Diagram

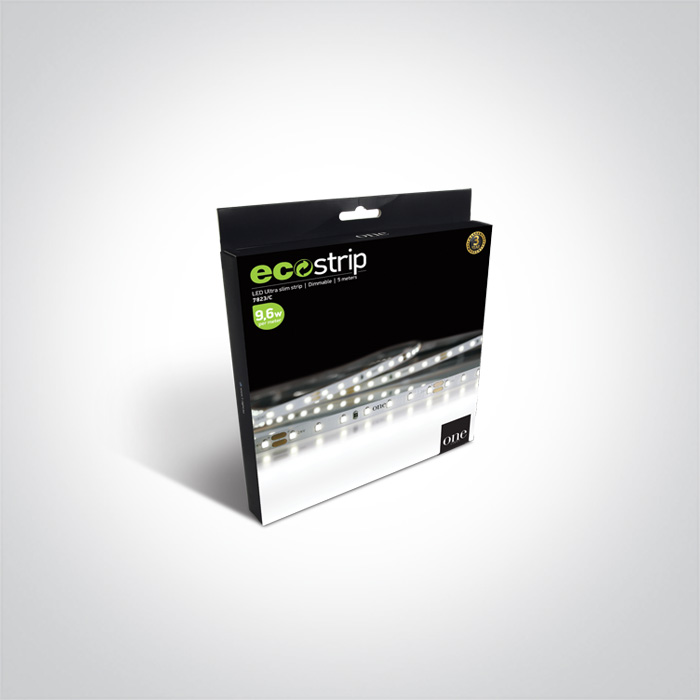

Packing Info
Box Length
24cm
Box Width
21,5cm
Box Height
2cm
Box Weight
0.155kg
Pcs/Carton
40
Carton Length
51cm
Carton Width
45cm
Carton Height
24cm
Carton Weight
6,9Kg
Barcode
5291889048787
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
