New 2025 Edition 3 > Strips & Profiles
7820C/RGBW
19W/meter RGBW Digital SPI flexible LED light strip, with 60 SMD5050 LEDs/meter.

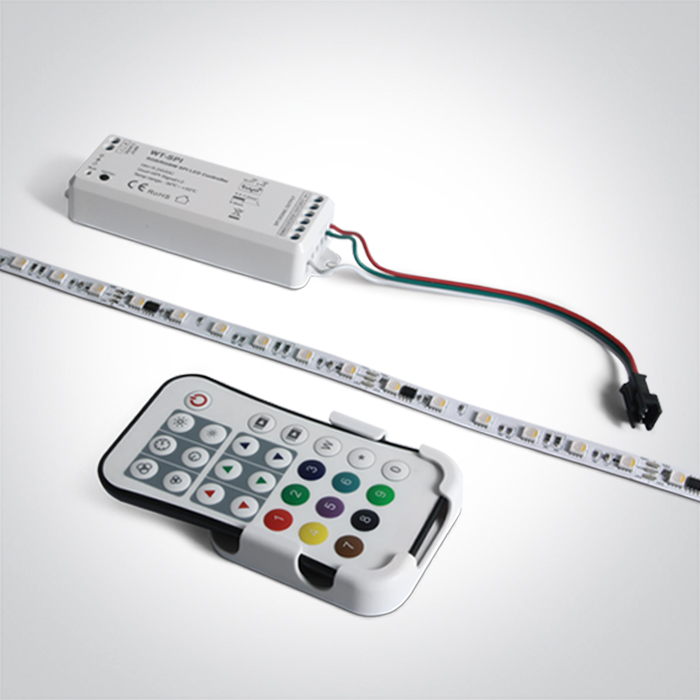

Supplied in 10 meters roll with receiver, remote control and 3M double-face adhesive tape.
Includes 40 selectable program modes.

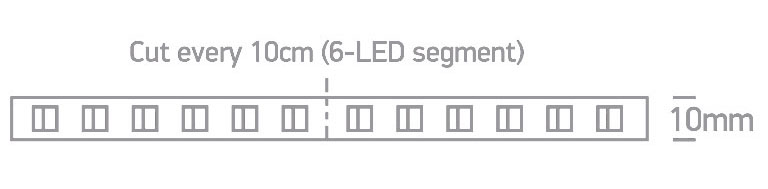

Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 10 meters roll with receiver, remote control and 3M double-face adhesive tape.
Includes 40 selectable program modes.
Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Strips & Profiles
Order Code
7820C/RGBW
Shape
Rectangular
Length
10000mm
Width
10mm
Height
2mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
19W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 5050
F Mark
Illumination Data
Colour Temperature
RGB+3000K
Lumen Output
292lm/m (3000K)
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.576kg
Pcs/Carton
25
Barcode
5291889084143
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
