    7307MA/B/V
    7307MA/B/V
    7W CCT Variable LED module suitable for MR16 fittings.

    Complete with non-dimmable driver.

    Complies with standard EN62560 and any other specific standards.
    IP
    CRI
    Beam Angle
    CE

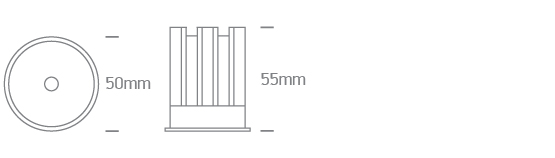

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    Lamps
    Order Code
    7307MA/B/V
    Colour
    Black
    Material
    Aluminium
    Shape
    Circular
    Height
    55mm
    Diameter
    50mm

    Electrical Characteristics

    +
    Gear
    External-Included
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Output
    160mA
    Safety Class
    Dimmable
    No
    Lamp
    Input Type
    Constant Current
    Input Current
    160mA
    Power (Watts)
    7W
    IP Rating
    IP20
    Lamp Type
    LED
    LED Type
    COB

    Illumination Data

    +
    Colour Temperature
    3000K-4000K-5000K
    Lumen Output
    600lm
    Light Efficiency
    85,71lm/W
    CRI
    90
    Beam Angle
    36°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.214kg
    Pcs/Carton
    50
    Barcode
    5291889085492
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
