25 Lamps > G9 LED Dimmable & CCT Variable

7103ALGD/W

Gallery
7103ALGD/W
7103ALGD/W

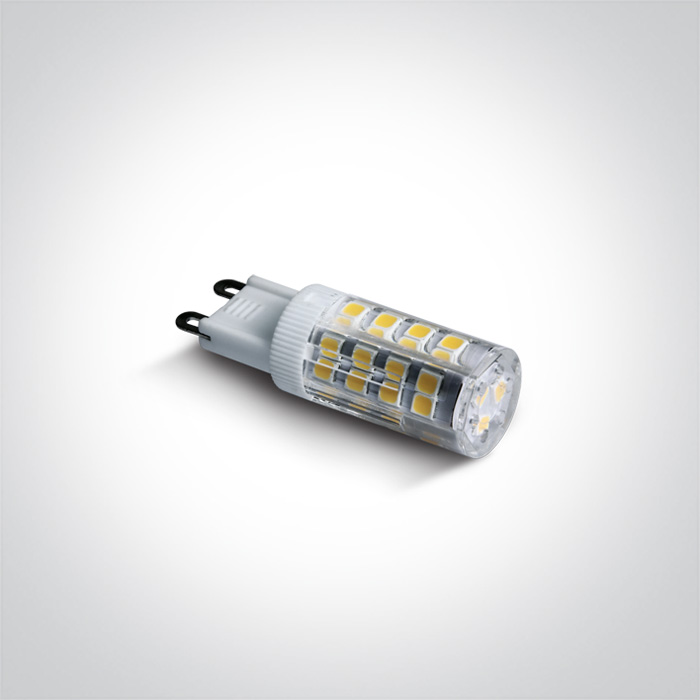

Triac dimmable SMD LED G9 3,5W 230V AC lamp.

Suitable for residential and commercial applications.

Complies with standard EN62560 and any other specific standards.
CRI
Dimmable
Beam Angle
CE

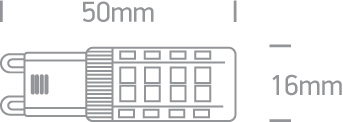

Dimensions
Downloads

Physical Specification

+
Product Type
Gear
Item Group
25 Lamps
Family
G9 LED Dimmable & CCT Variable
Order Code
7103ALGD/W
Shape
Circular
Height
50mm
Diameter
16mm

Electrical Characteristics

+
Gear
No
Lamp
Input Type
Constant Current
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,5W
Lamp Type
LED
Lamp Holder
G9
LED Type
SMD
LED Brand
Sanan
Dimmable
Yes
Dimmer type
Triac

Illumination Data

+
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
85,71lm/W
CRI
80
Illumination Diagram

Packing Info

+
Box Length
2cm
Box Width
2cm
Box Height
6,2cm
Box Weight
0,01Kg
Pcs/Carton
100
Barcode
5291889048060
HS Code
8539500000

Energy Label

+
Energy Consumption
3,5kWh/1000h

Certification & Warranty

+
Warranty
2 Years
Average Lifetime
15000hrs
Switching Cycles
30000
Wee Directive
Yes
Year in which the CE mark was affixed
16
