20 Garden & Underwater > The Garden Square Spots
7052/AN/W

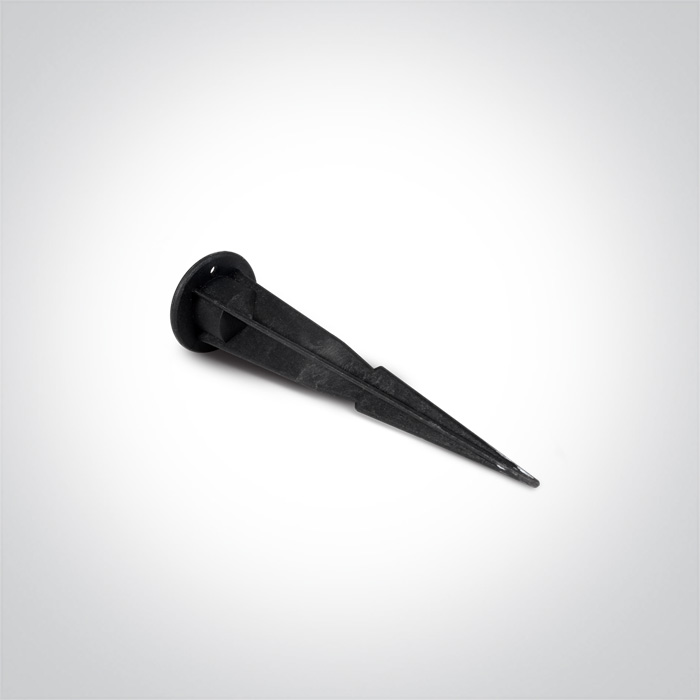

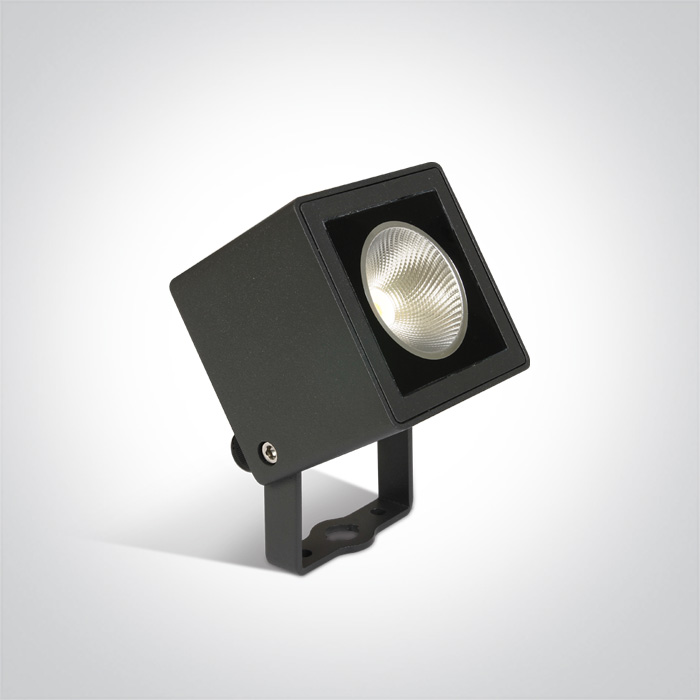

7W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
The Garden Square Spots
Order Code
7052/AN/W
Colour
Anthracite
Material
Die Cast
Diffuser Material
Glass
Shape
Rectangular
Length
80mm
Width
80mm
Height
70mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
2
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
100cm
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9V
Power (Watts)
6,3W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-8,4W
Power Factor
0,9
Constant Current
Yes
700mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
78,57lm/W
CRI
80
Beam Angle
47°
Illumination Diagram
Packing Info
Box Length
29cm
Box Width
9cm
Box Height
9cm
Box Weight
0.900kg
Pcs/Carton
12
Barcode
5291889038733
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
15
