20 Industrial & Floodlights > AC LED Floodlights 100-250W
7028CF/B/C

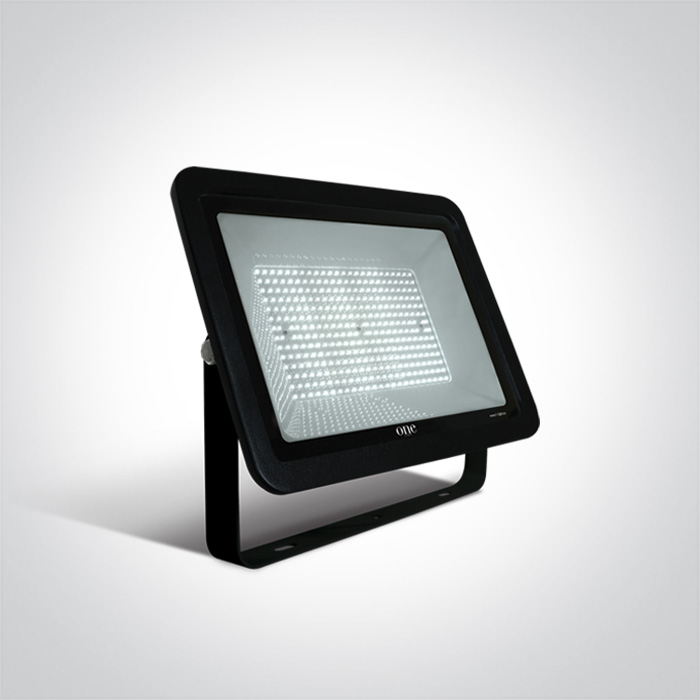

250W AC LED flood light with adjustable mounting bracket.
IP65 rated for outdoor use.
Complies with standard EN60598-1 and any other specific standards.
IP65 rated for outdoor use.
Complies with standard EN60598-1 and any other specific standards.

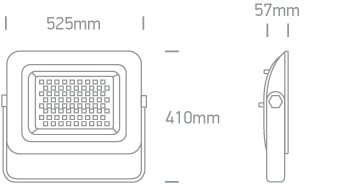

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
AC LED Floodlights 100-250W
Order Code
7028CF/B/C
Colour
Black
Material
Die Cast
Diffuser Material
Glass
Shape
Rectangular
Length
525mm
Width
410mm
Height
57mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
250W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
30cm
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
22500lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
110°
Illumination Diagram
Packing Info
Box Length
41.5cm
Box Width
5.5cm
Box Height
52.5cm
Box Weight
7.800kg
Pcs/Carton
2
Carton Length
53.8cm
Carton Width
22.8cm
Carton Height
43cm
Carton Weight
13,8Kg
Barcode
5291889056034
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
