New 2025 Edition 3 > Industrial & Floodlights
7028CD/B/V

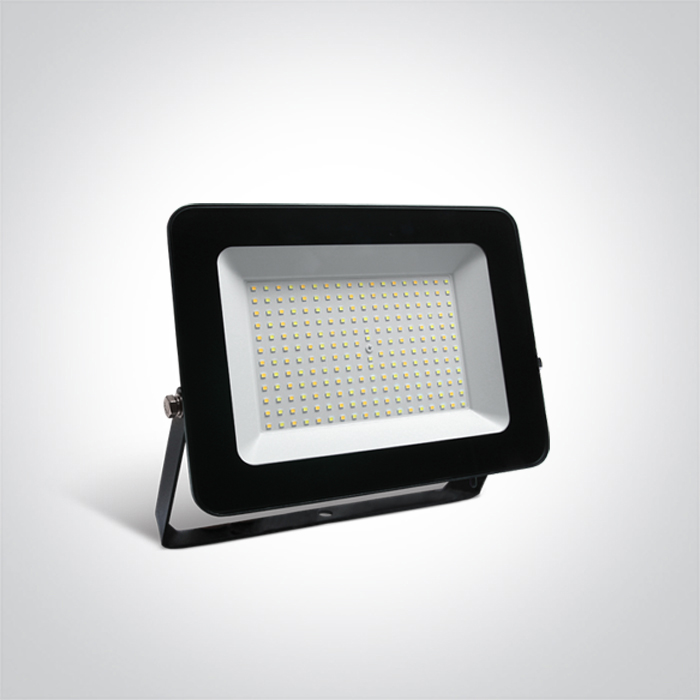

100W DOB LED CCT Variable floodlight with adjustable mounting bracket.
IP65 rated for outdoor use.
Complies with standard EN60598-1 and any other specific standards.
IP65 rated for outdoor use.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Industrial & Floodlights
Order Code
7028CD/B/V
Colour
Black
Material
Aluminium
Diffuser Material
Glass
Shape
Rectangular
Length
295mm
Width
246mm
Height
30mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
100W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Light Source
LED built in
LED Type
SMD
Cable Length
50cm
Gear
Gear Type
Led Driver
Input Voltage
220-240V
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6500K
Lumen Output
10000lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
110°
Illumination Diagram
Packing Info
Box Weight
1.380kg
Pcs/Carton
5
Barcode
5291889083962
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
25
