21 Industrial & Floodlights > The COB LED Slim Floodlights
7028A/AN/W

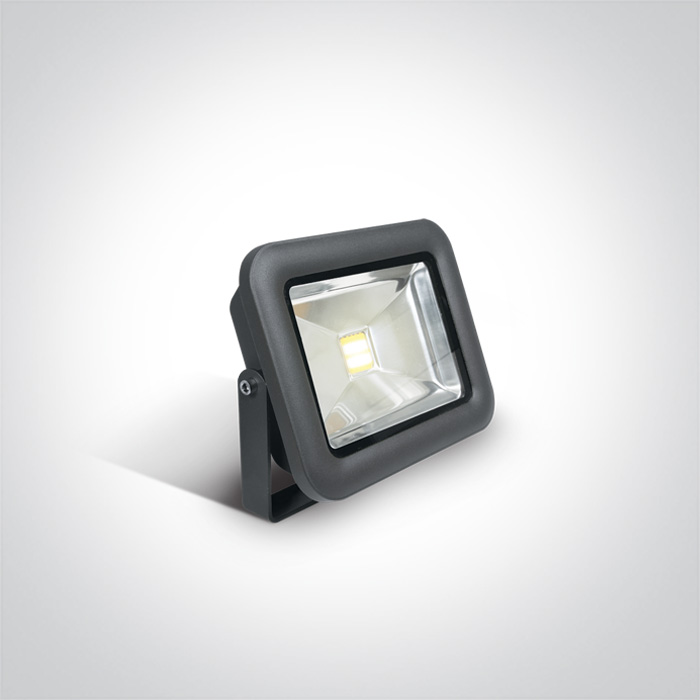

10W COB LED Slim floodlight, IP65.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

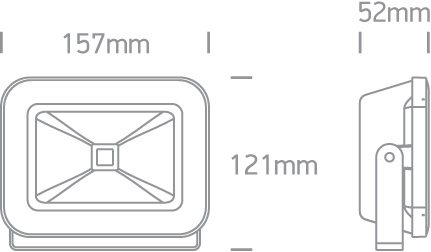

Dimensions
Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
The COB LED Slim Floodlights
Order Code
7028A/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
157mm
Width
121mm
Height
52mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
100cm
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
32V
Power (Watts)
9,6W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,2-12W
Power Factor
0,9
Constant Current
Yes
300mA
24-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
700lm
Light Efficiency
70lm/W
CRI
70
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
14,5cm
Box Width
5,5cm
Box Height
16cm
Box Weight
0.553kg
Pcs/Carton
30
Barcode
5291889027072
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
