20 Industrial & Floodlights > CCT V Streetlight
.jpg)
.jpg)
70118C/AN/V
150W CCT Variable DOB LED street light.
Driver on board.
Accessory 050400A/AN for wall mounting or 050400B/AN for post top diameter 60mm or side-entry diameter 60mm must be ordered separately.
Complies with standard EN60598-1 and any other specific standards.
Driver on board.
Accessory 050400A/AN for wall mounting or 050400B/AN for post top diameter 60mm or side-entry diameter 60mm must be ordered separately.
Complies with standard EN60598-1 and any other specific standards.

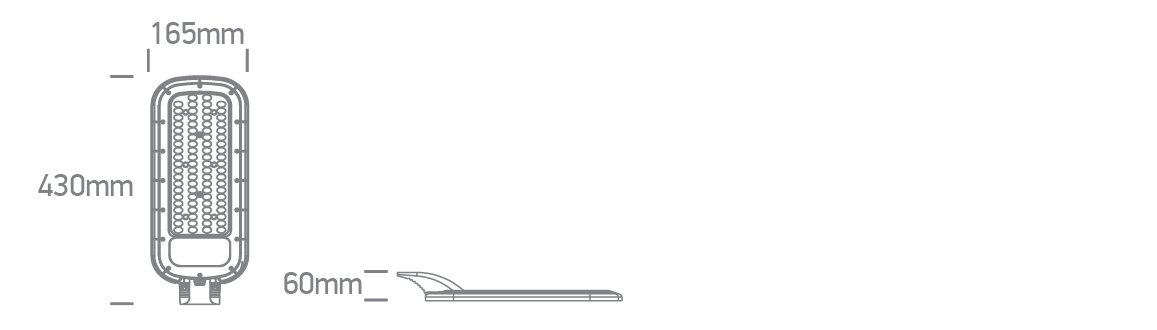

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
CCT V Streetlight
Order Code
70118C/AN/V
Colour
Anthracite
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
430mm
Width
165mm
Height
60mm
Outdoor
Yes
Adjustable
1 Direction
IK Rating
8
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
150W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
100cm
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
15000lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
130°x75°
Illumination Diagram
Packing Info
Box Weight
1.160kg
Pcs/Carton
5
Barcode
5291889088714
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
