New 2025 Edition 2 > Industrial & Floodlights
.jpg)

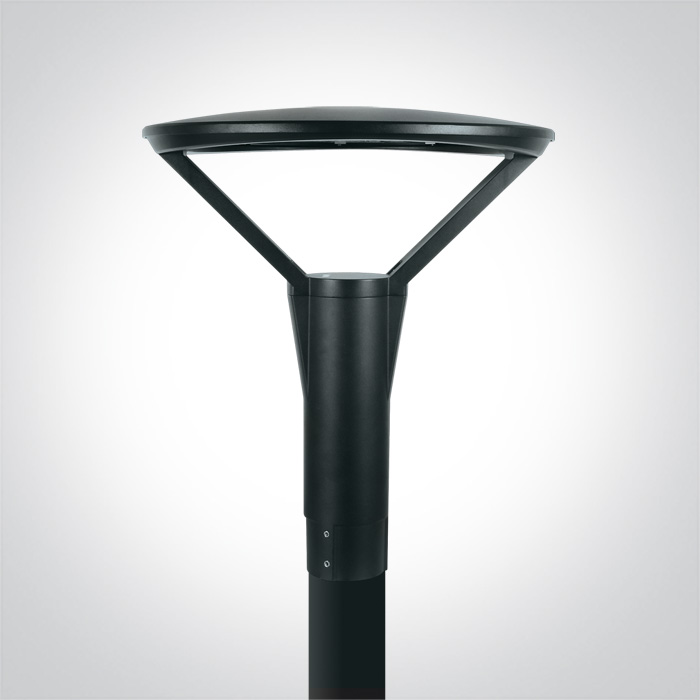

70112/B/V
CCT & Power Variable LED outdoor light for poles 3m and higher. Ideal for parks,
parkings, playgrounds. Post Diameter 60mm.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Industrial & Floodlights
Order Code
70112/B/V
Colour
Black
Material
Die Cast
Shape
Circular
Height
530mm
Diameter
450mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
120-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W-40W-60W-75W
IP Rating
IP66
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP66
Light Source
LED built in
Gear
Gear Type
Led Driver
Input Voltage
120-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Code
2700K-3300K-4000K
Lumen Output
8250lm (75W)
Light Efficiency
110lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
9.300kg
Pcs/Carton
1
Barcode
5291889080725
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
