ONE Light

    • New 2025 Edition 3 > Wall Recessed & Inground

    69076D/W
    Gallery
    69076D/W
    69076D/W

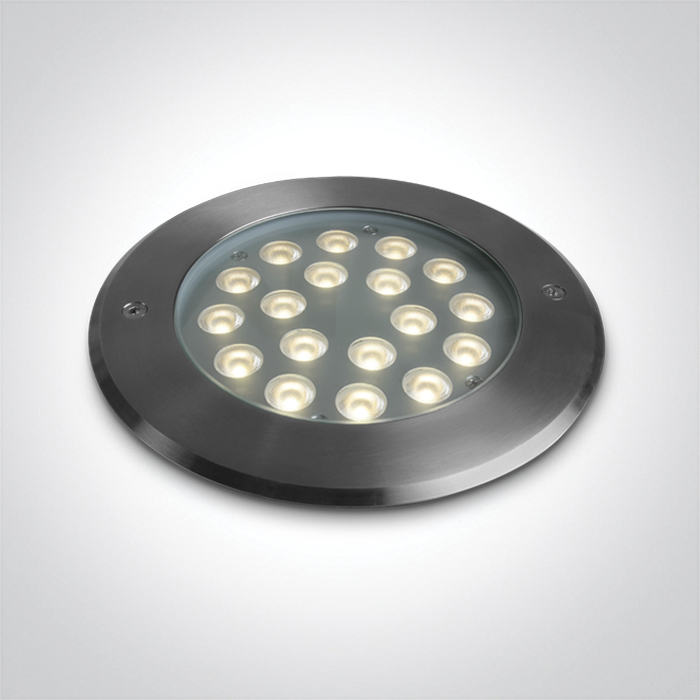

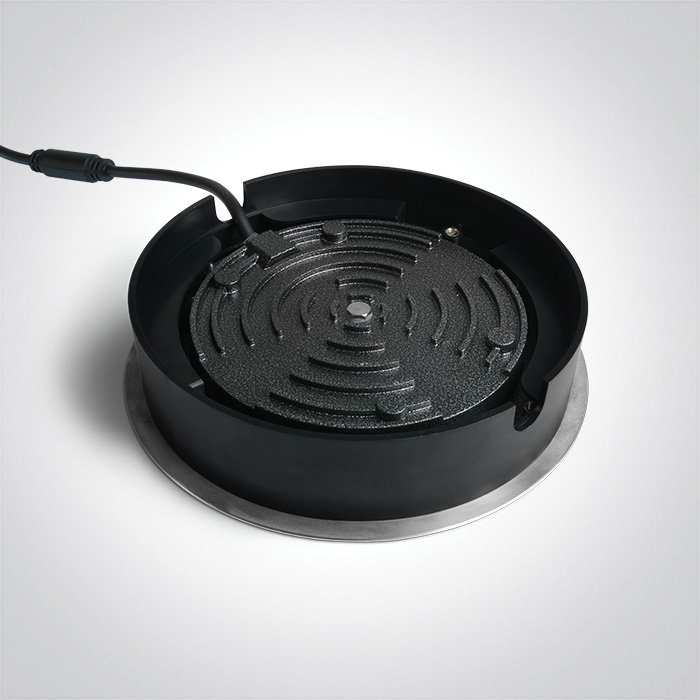

    18x1W LED inground. IP67, stainless steel 316L and die cast aluminium body.

    Requires 24V DC driver.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor-Outdoor
    IP
    CRI
    CRI
    Beam Angle
    CE

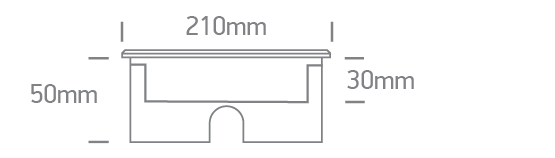

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    Wall Recessed & Inground
    Order Code
    69076D/W
    Colour
    Stainless Steel
    Material
    Stainless Steel 316
    Shape
    Circular
    Height
    50mm
    Diameter
    210mm
    Inground
    Yes
    Depth Required
    50mm+300mm drainage
    Indoor
    Yes
    Outdoor
    Yes
    Adjustable
    No
    IK Rating
    10

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    24V DC
    Safety Class
    Power (Watts)
    18W
    Light Source
    LED built in
    Cable Length
    2m
    F Mark

    Illumination Data

    +
    Colour Temperature
    3000K
    Lumen Output
    1800lm
    Light Efficiency
    100lm/W
    CRI
    90
    Beam Angle
    45°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    2.050kg
    Pcs/Carton
    6
    Barcode
    5291889084068
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    2 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
