    • 18 Wall Recessed & Inground > The Dark Light Inground Constant current

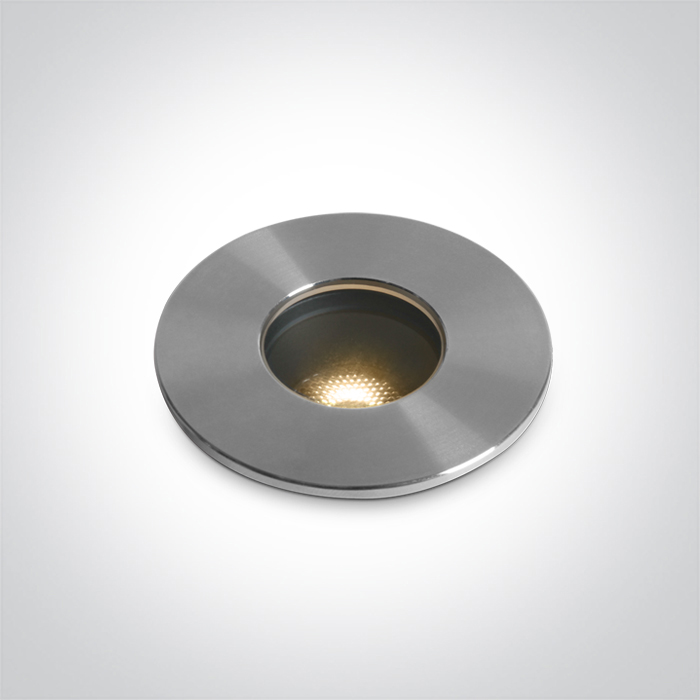

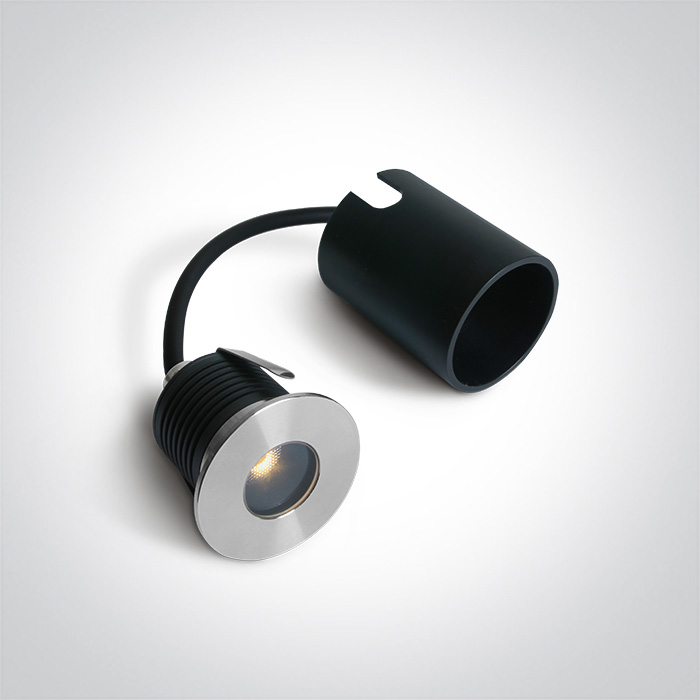

    69068B/W
    Gallery
    69068B/W
    69068B/W
    4,5W COB LED inground, IP67.

    Requires 500mA driver.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor-Outdoor
    IP
    CRI
    CRI
    Dark Light
    Beam Angle
    CE
    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    18 Wall Recessed & Inground
    Family
    The Dark Light Inground Constant current
    Order Code
    69068B/W
    Colour
    Stainless Steel
    Material
    Aluminium
    Shape
    Circular
    Height
    60mm
    Diameter
    50mm
    Inground
    Yes
    Depth Required
    90mm+300mm drainage
    Indoor
    Yes
    Outdoor
    Yes
    Adjustable
    No
    IK Rating
    10

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Current
    Input Current
    500mA
    Safety Class
    Light Source
    LED built in
    LED Type
    COB
    Cable Length
    200cm

    Illumination Data

    +
    Colour Temperature
    3000K
    Lumen Output
    360lm
    Light Efficiency
    80lm/W
    CRI
    90
    Illumination Diagram
    Dark Light
    Yes

    Packing Info

    +
    Box Weight
    0.313kg
    Pcs/Carton
    36
    Barcode
    5291889079705
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    2 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
