19 Garden & Underwater > The LED Underwater Range Stainless steel

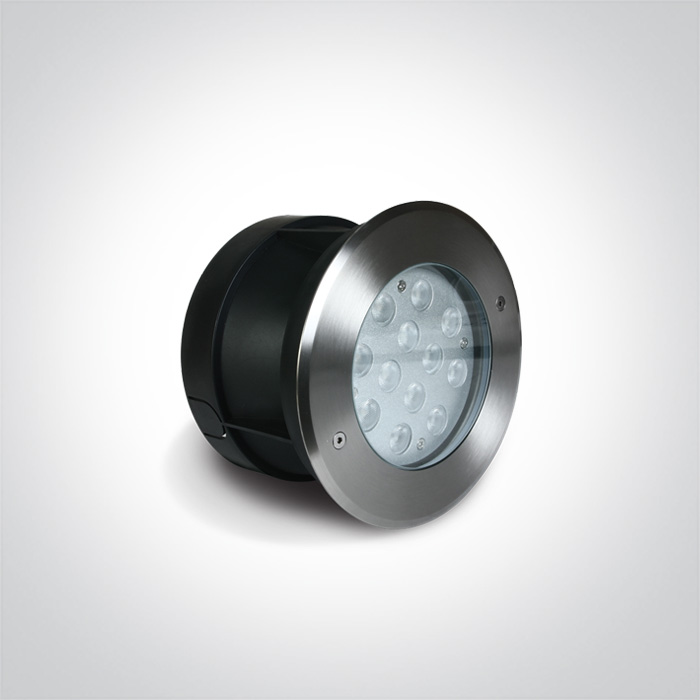

69066D/C
12W underwater LED spot, IP68.
Underwater only / 2m max depth.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Underwater only / 2m max depth.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.

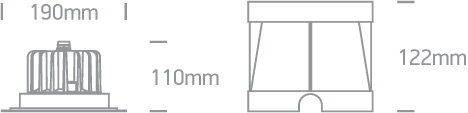

Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
The LED Underwater Range Stainless steel
Order Code
69066D/C
Colour
Stainless Steel
Material
Stainless Steel 316
Shape
Circular
Height
122mm
Diameter
190mm
Cutout Hole Diameter
175mm
Recessed wall
Yes
Inground
Yes
Underwater
Yes
Depth Required
130mm
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
12W
IP Rating
IP68
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Bridgelux
LED Number
12
Cable Length
500cm
Illumination Data
Colour Temperature
4000K
Lumen Output
850lm
Light Efficiency
70,83lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.500kg
Pcs/Carton
6
Barcode
5291889067368
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
