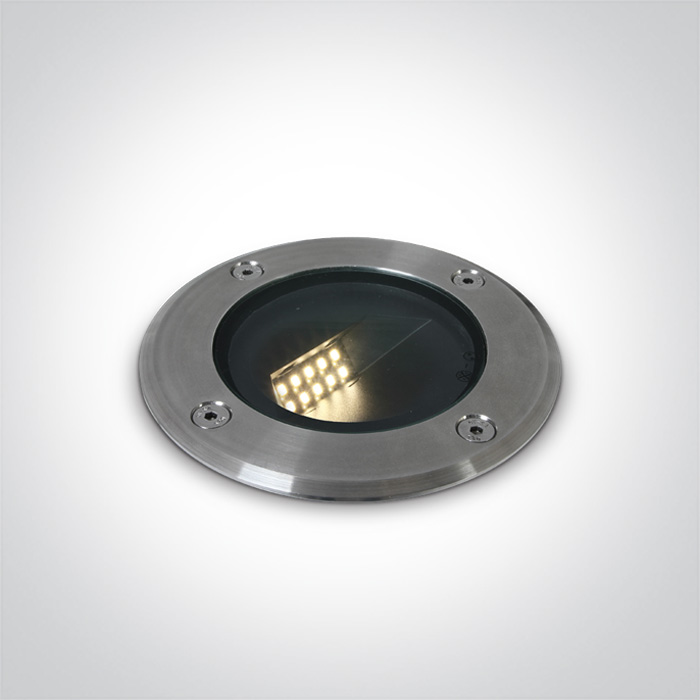

18 Wall Recessed & Inground > The Asymmetric Inground Stainless steel
69062/W
8W COB LED inground assymetrical beam, IP67, stainless steel 316, for path illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
The Asymmetric Inground Stainless steel
Order Code
69062/W
Colour
Stainless Steel
Material
Stainless Steel 316
Shape
Circular
Height
150mm
Diameter
120mm
Cutout Hole Diameter
115mm
Inground
Yes
Depth Required
170mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
22V
Safety Class
Power (Watts)
7,7W
IP Rating
IP67
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-7W
Power Factor
0,8
Constant Current
Yes
350mA
12-20V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20~+55°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
680lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.225kg
Pcs/Carton
12
Barcode
5291889066071
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
