18 Wall Recessed & Inground > The Trimless Inground Range
.jpg)

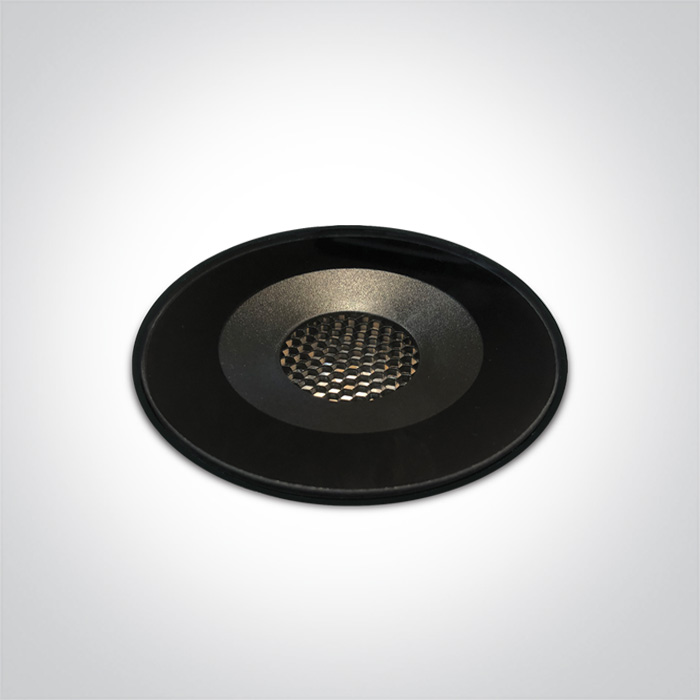

69060/B/W
6W COB LED inground, IP67, for path illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
The Trimless Inground Range
Order Code
69060/B/W
Colour
Black
Material
Die Cast
Diffuser Material
Glass
Shape
Circular
Height
92mm
Diameter
98mm
Cutout Hole Diameter
136mm
Inground
Yes
Depth Required
150mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
10V
Safety Class
Power (Watts)
5W
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6W
Power Factor
0,9
Constant Current
Yes
500mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
460lm
Light Efficiency
76,67lm/W
CRI
80
Beam Angle
25°
Illumination Diagram
Packing Info
Box Weight
1.166kg
Pcs/Carton
6
Barcode
5291889066149
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
