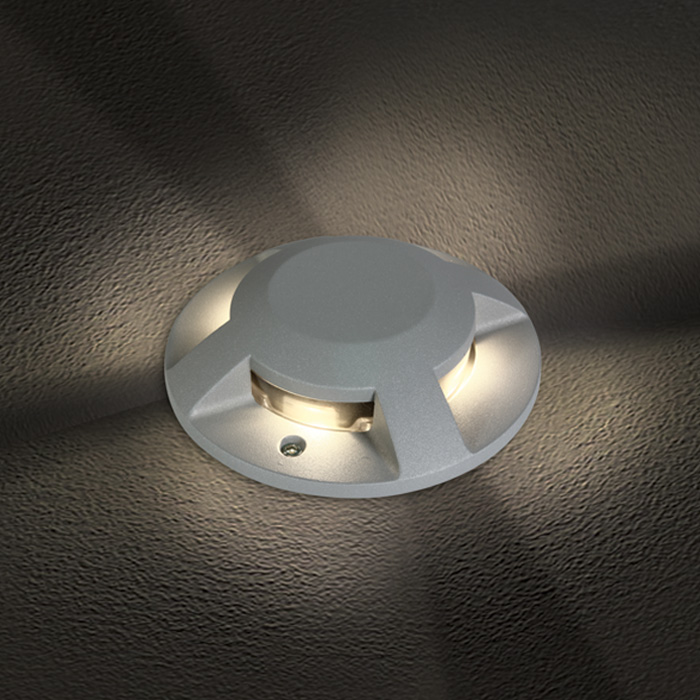

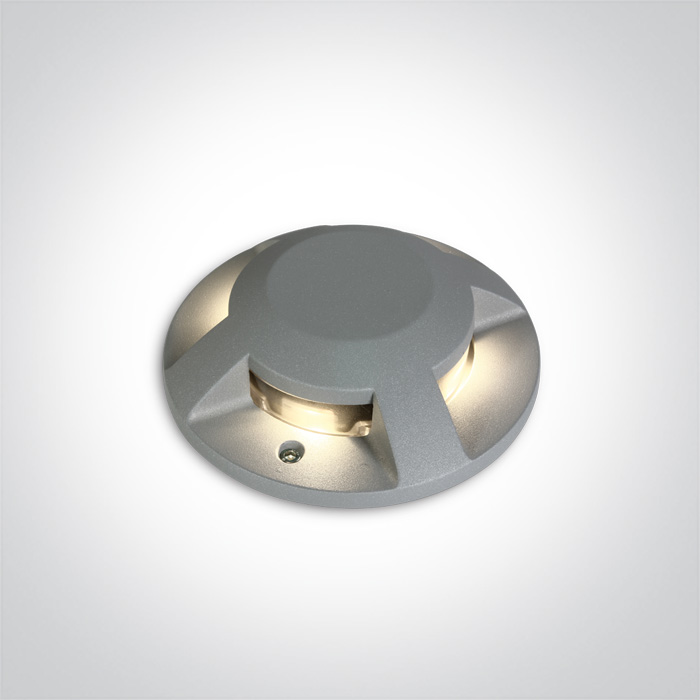

69058C/G/W
4x3W COB LED Surface ground, IP67 for path illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Ground Surface Mounted Range Die cast
Order Code
69058C/G/W
Colour
Grey
Material
Die Cast
Shape
Circular
Height
42mm
Diameter
200mm
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
4x3W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
33V
Power (Watts)
4x2,5W
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Edison
LED Number
4
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9-12W
Power Factor
0,9
Constant Current
Yes
300mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.858kg
Pcs/Carton
12
Barcode
5291889065845
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
