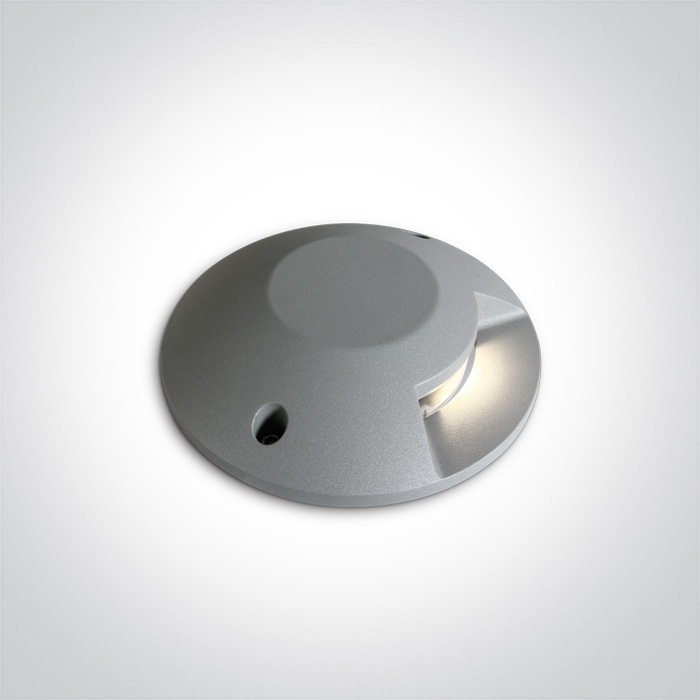

69058A/G/W

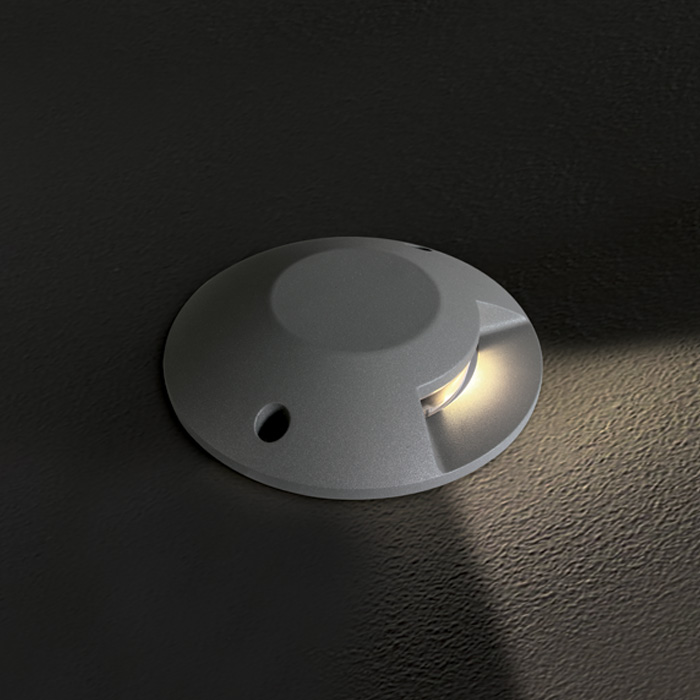

6W COB LED Surface ground, IP67 for path illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

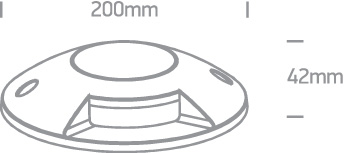

Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Ground Surface Mounted Range Die cast
Order Code
69058A/G/W
Colour
Grey
Material
Die Cast
Shape
Circular
Height
42mm
Diameter
200mm
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
10V
Safety Class
Power (Watts)
5W
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6W
Power Factor
0,9
Constant Current
Yes
500mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.916kg
Pcs/Carton
12
Barcode
5291889065852
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
