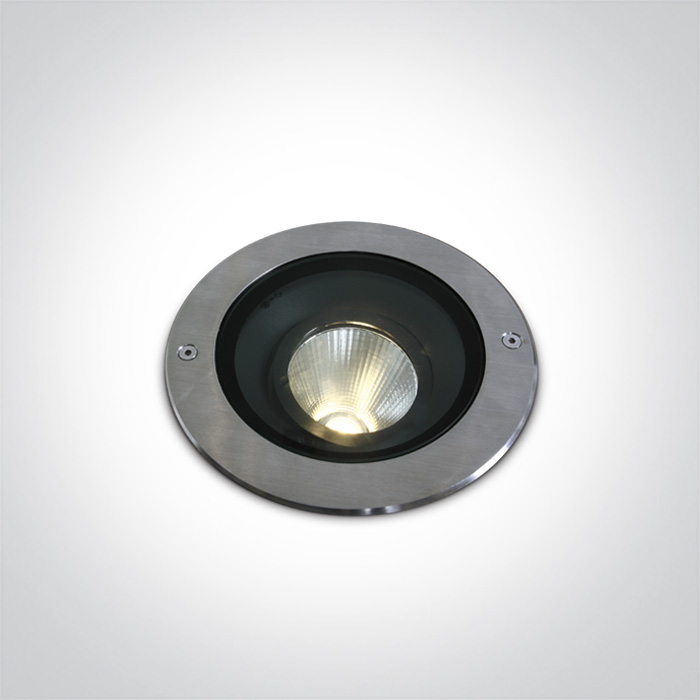

18 Wall Recessed & Inground > The COB Inground Adjustable Range Stainless steel
69054/W
15W COB LED inground IP67, stainless steel 316, adjustable range.
AC LED .
Complies with standard EN60598-1 and any other specific standards.
AC LED .
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
The COB Inground Adjustable Range Stainless steel
Order Code
69054/W
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Circular
Height
220mm
Diameter
185mm
Cutout Hole Diameter
230mm
Inground
Yes
Depth Required
270mm + 300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
10
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP67
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
840lm
Light Efficiency
56lm/W
CRI
80
Beam Angle
20°
Illumination Diagram
Packing Info
Box Length
24cm
Box Width
24cm
Box Height
28,5cm
Box Weight
4.350kg
Pcs/Carton
2
Barcode
5291889057284
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
