19 Wall Recessed & Inground > The COB Inground Adjustable Range Stainless steel

69054A/W

Gallery
69054A/W
69054A/W

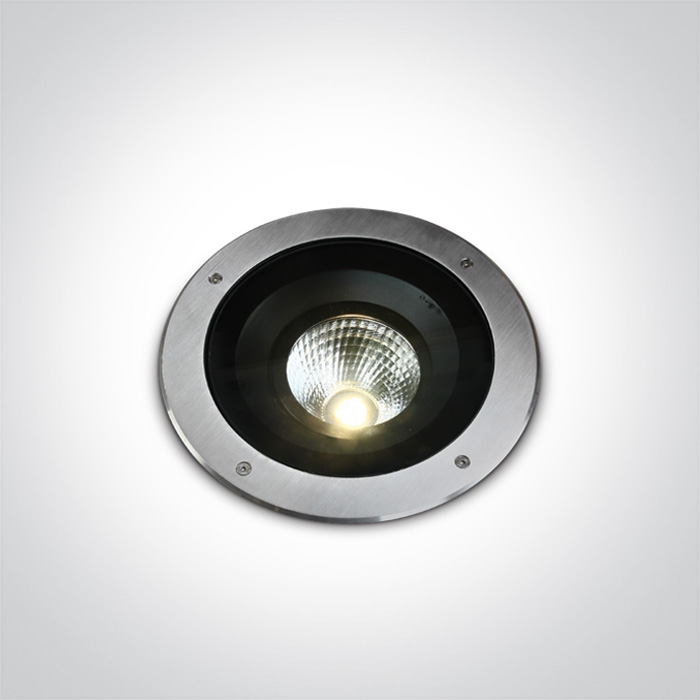

30W COB LED inground IP67, stainless steel 316, adjustable range.

AC LED .

Complies with standard EN60598-1 and any other specific standards.
Indoor-Outdoor
IP
CRI
CRI
Adjustable
Dimmable
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
19 Wall Recessed & Inground
Family
The COB Inground Adjustable Range Stainless steel
Order Code
69054A/W
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Circular
Height
270mm
Diameter
270mm
Cutout Hole Diameter
330mm
Inground
Yes
Depth Required
330mm + 300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
10

Electrical Characteristics

+
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP67
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Cable Length
200cm
F Mark

Illumination Data

+
Colour Temperature
3000K
Lumen Output
2000lm
Light Efficiency
66,67lm/W
CRI
80
Beam Angle
20°
Illumination Diagram

Packing Info

+
Box Length
34cm
Box Width
34cm
Box Height
35cm
Box Weight
8.000kg
Pcs/Carton
1
Barcode
5291889057291
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
