18 Wall Recessed & Inground > The COB Honeycomb Range
.jpg)
69052A/W

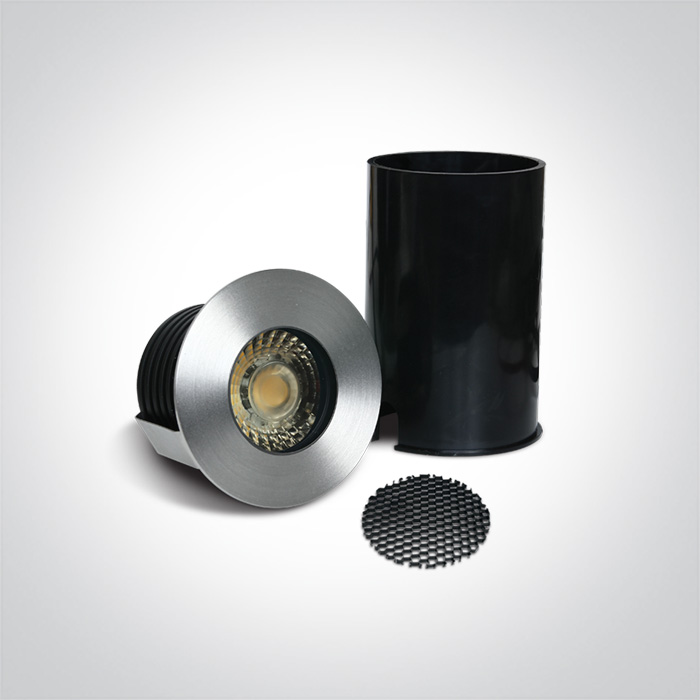

13W COB LED inground with honeycomb, IP67.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
The COB Honeycomb Range
Order Code
69052A/W
Colour
Aluminium
Material
Aluminium
Diffuser Material
Glass
Shape
Circular
Height
80mm
Diameter
92mm
Cutout Hole Diameter
75mm
Inground
Yes
Depth Required
140mm + 300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
37V
Safety Class
Power (Watts)
13W
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1000lm
Light Efficiency
76,92lm/W
CRI
80
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
11,5cm
Box Width
10,5cm
Box Height
13cm
Box Weight
0.700kg
Pcs/Carton
24
Barcode
5291889056997
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
