19 Wall Recessed & Inground > The COB Inground Range Stainless steel

69050/W

Gallery
69050/W
69050/W

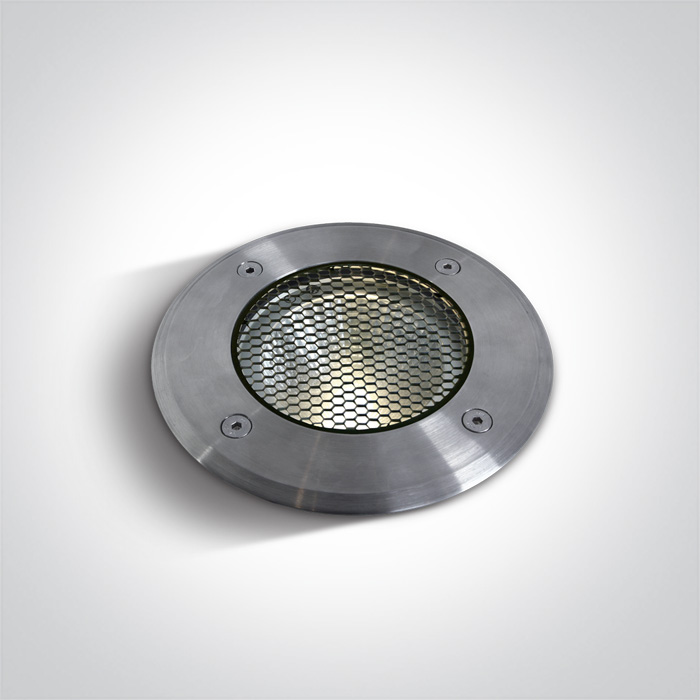

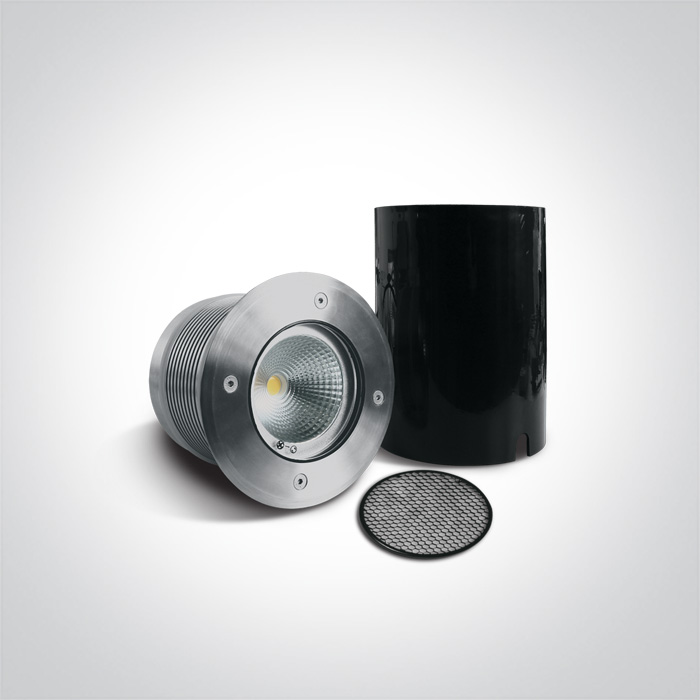

20W COB LED inground with removable honeycomb, IP67, stainless steel 316, for path illumination.

AC LED .

Complies with standard EN60598-1 and any other specific standards.
Indoor-Outdoor
IP
CRI
CRI
Dimmable
Beam Angle
CE

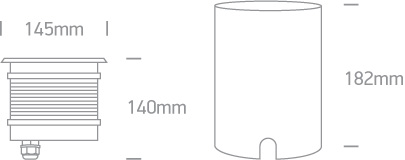

Dimensions
Downloads

Physical Specification

+
Item Group
19 Wall Recessed & Inground
Family
The COB Inground Range Stainless steel
Order Code
69050/W
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Circular
Height
140mm
Diameter
145mm
Cutout Hole Diameter
132mm
Inground
Yes
Depth Required
200mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8

Electrical Characteristics

+
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP67
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Cable Length
200cm
F Mark

Illumination Data

+
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
25°
Illumination Diagram

Packing Info

+
Box Weight
2.583kg
Pcs/Carton
6
Barcode
5291889055914
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
