19 Wall Recessed & Inground > The COB Inground Range Stainless steel
.jpg)
69050/C

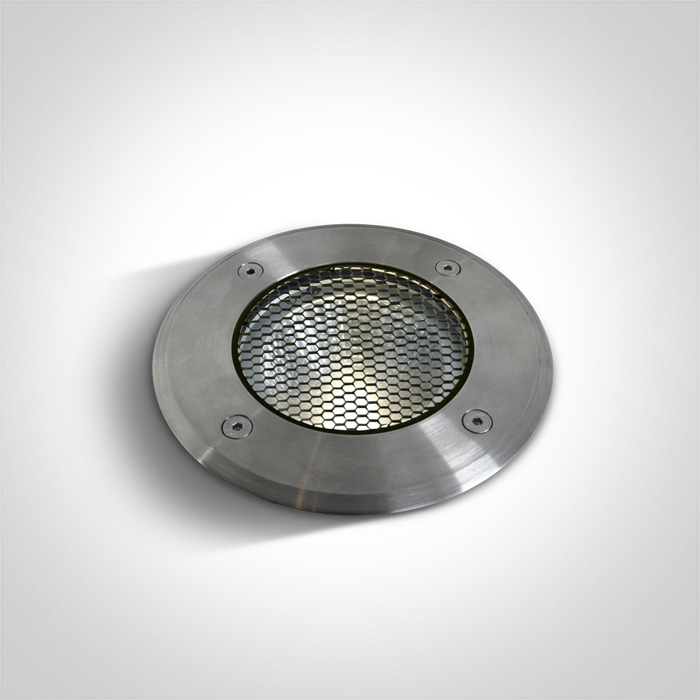

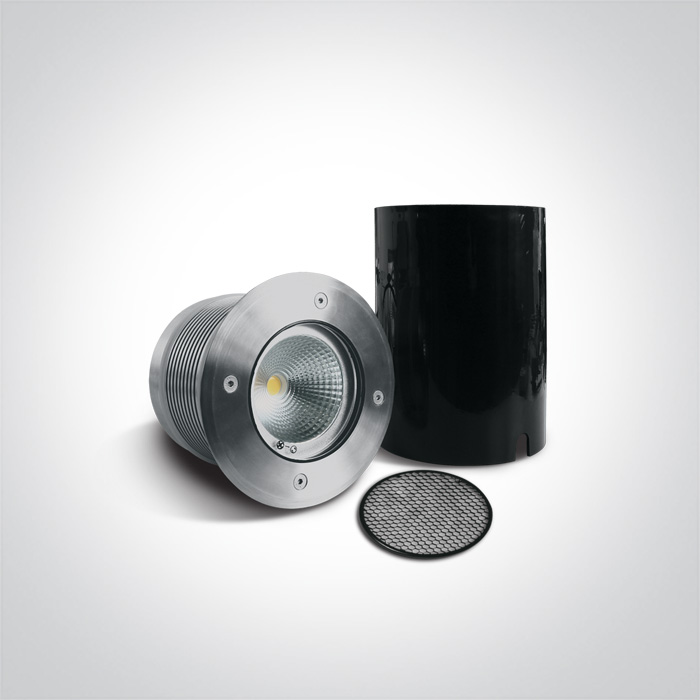

20W COB LED inground with removable honeycomb, IP67, stainless steel 316, for path illumination.
AC LED .
Complies with standard EN60598-1 and any other specific standards.
AC LED .
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The COB Inground Range Stainless steel
Order Code
69050/C
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Circular
Height
140mm
Diameter
145mm
Cutout Hole Diameter
132mm
Inground
Yes
Depth Required
200mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP67
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
1800lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
25°
Illumination Diagram
Packing Info
Box Weight
2.583kg
Pcs/Carton
6
Barcode
5291889065722
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
