18 Wall Recessed & Inground >
69042B/AL/W

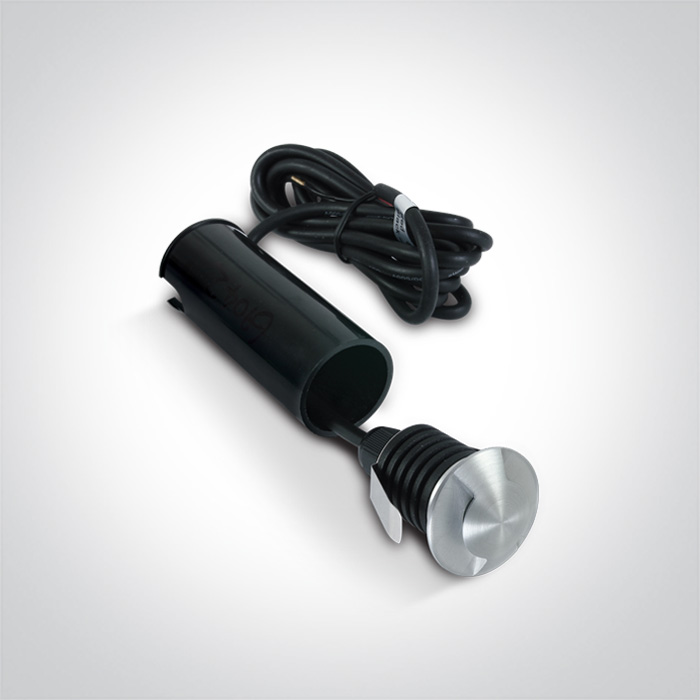

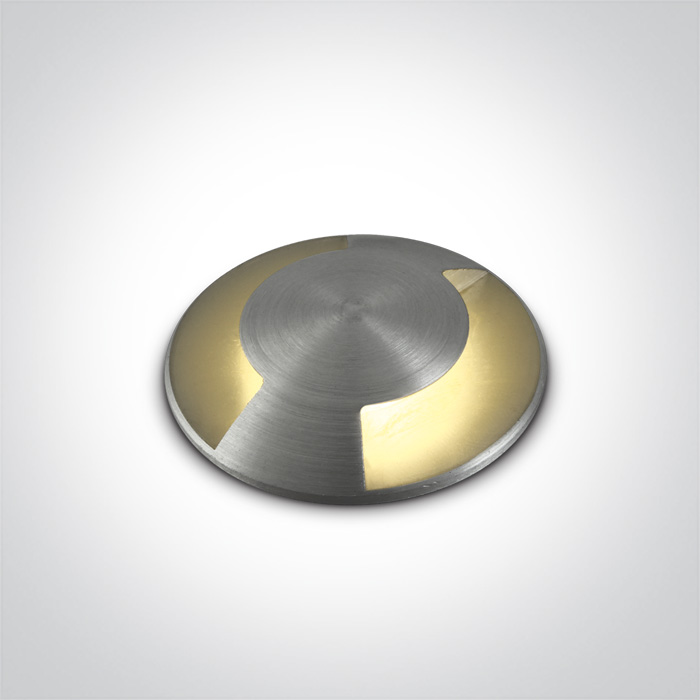

1W LED inground, IP67, aluminium, for path illumination.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Order Code
69042B/AL/W
Colour
Aluminium
Material
Natural Aluminium
Diffuser Material
Glass
Shape
Circular
Height
53mm
Diameter
37mm
Cutout Hole Diameter
30mm decking 35mm concrete
Inground
Yes
Depth Required
80mm deck 95mm+300mm drainage Concrete
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
3,1V
Safety Class
Power (Watts)
1W
IP Rating
IP67
Light Source
LED built in
LED Brand
Osram
LED Number
1
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
80lm
Light Efficiency
80lm/W
CRI
90
Illumination Diagram
Packing Info
Box Length
6,5cm
Box Width
5cm
Box Height
10,5cm
Box Weight
0.198kg
Pcs/Carton
50
Barcode
5291889045267
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
50000Hours
Wee Directive
Yes
Year in which the CE mark was affixed
16
