19 Wall Recessed & Inground > The Inground Mini Series

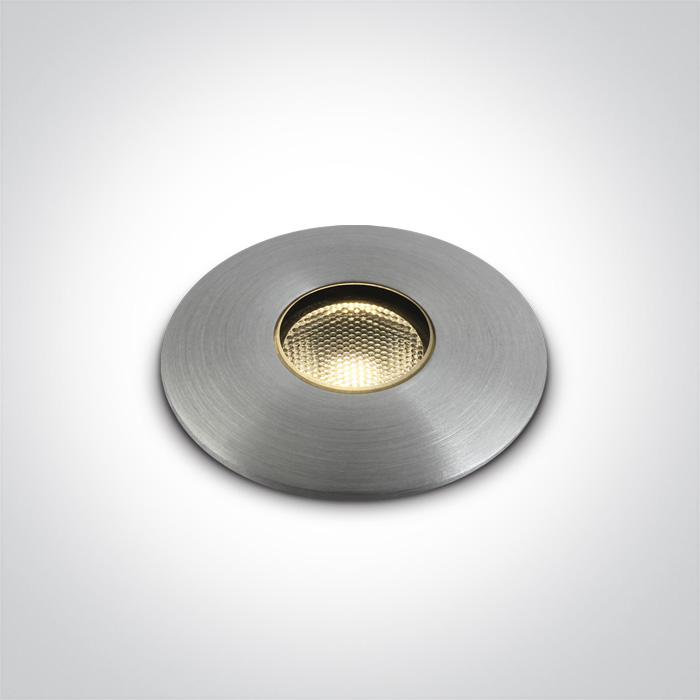

69042/AL/W

Must be ordered separately
69042/AL/W

1W / 2W LED inground, IP67, aluminium, for path illumination.

Requires 350mA / 700mA driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor-Outdoor
IP
CRI
Beam Angle
CE

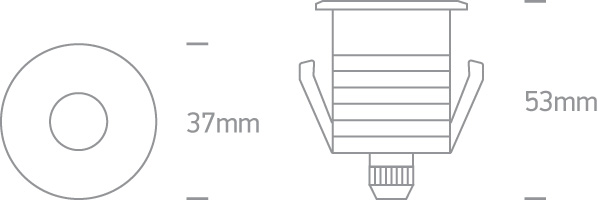

Dimensions
Downloads

Physical Specification

+
Item Group
19 Wall Recessed & Inground
Family
The Inground Mini Series
Order Code
69042/AL/W
Colour
Aluminium
Material
Natural Aluminium
Diffuser Material
Glass
Shape
Circular
Height
53mm
Diameter
37mm
Cutout Hole Diameter
30mm decking 35mm concrete
Inground
Yes
Depth Required
80mm deck 95mm+300mm drainage Concrete
Indoor
Yes
Outdoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA/700mA
Voltage
3,1V
Safety Class
Power (Watts)
1W/2W
IP Rating
IP67
Light Source
LED built in
LED Brand
Osram
LED Number
1
Cable Length
200cm
F Mark

Illumination Data

+
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
75lm/W
CRI
90
Illumination Diagram

Packing Info

+
Box Length
6,5cm
Box Width
5cm
Box Height
10,5cm
Box Weight
0.190kg
Pcs/Carton
50
Barcode
5291889045243
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
2 years
Average Lifetime
50000Hours
Wee Directive
Yes
Year in which the CE mark was affixed
16
