19 Wall Recessed & Inground > The COB Inground Range Stainless steel
69040/W

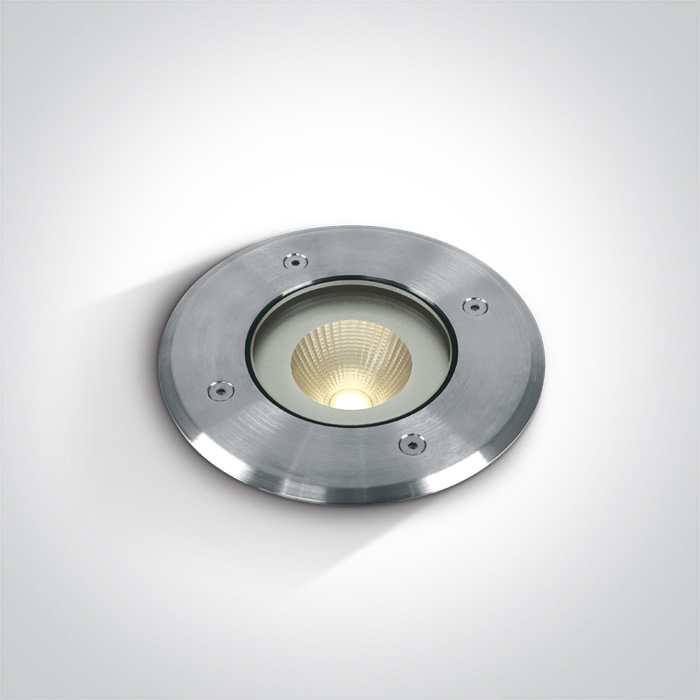

10W COB LED inground, IP67, stainless steel 316, for path illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The COB Inground Range Stainless steel
Order Code
69040/W
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Circular
Height
185mm
Diameter
125mm
Cutout Hole Diameter
106mm
Inground
Yes
Depth Required
185mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
50cm
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Safety Class
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,5
Constant Current
Yes
500mA
0
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
700lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
40°
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
12cm
Box Height
19cm
Box Weight
1.900kg
Pcs/Carton
6
Barcode
5291889043799
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
