19 Wall Recessed & Inground > The Inground Maxi Series LED Aluminium
69016A/W

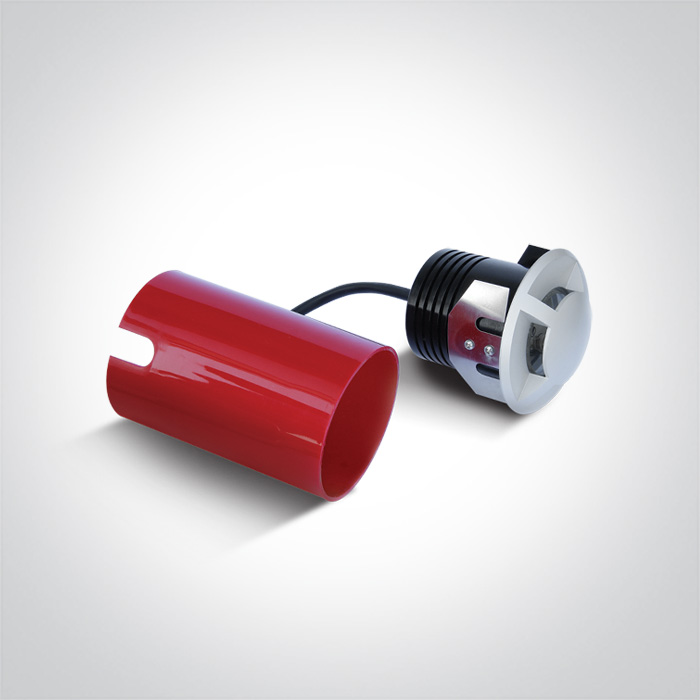

3W COB LED inground, aluminium, for path
illumination., IK08, IP67.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The Inground Maxi Series LED Aluminium
Order Code
69016A/W
Colour
Aluminium
Material
Aluminium
Shape
Circular
Height
105mm
Diameter
88mm
Cutout Hole Diameter
77mm
Inground
Yes
Depth Required
105mm+300mm drainage
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
8V
Power (Watts)
2,8W
IP Rating
IP67
Light Source
LED built in
LED Type
SMD 1208
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-4W
Power Factor
0,5
Constant Current
Yes
350mA
3-11V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
12,5cm
Box Height
12,5cm
Box Weight
0.811kg
Pcs/Carton
18
Barcode
5291889030188
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
