19 Wall Recessed & Inground > The GU10 Inground Range Stainless steel 316
69006G

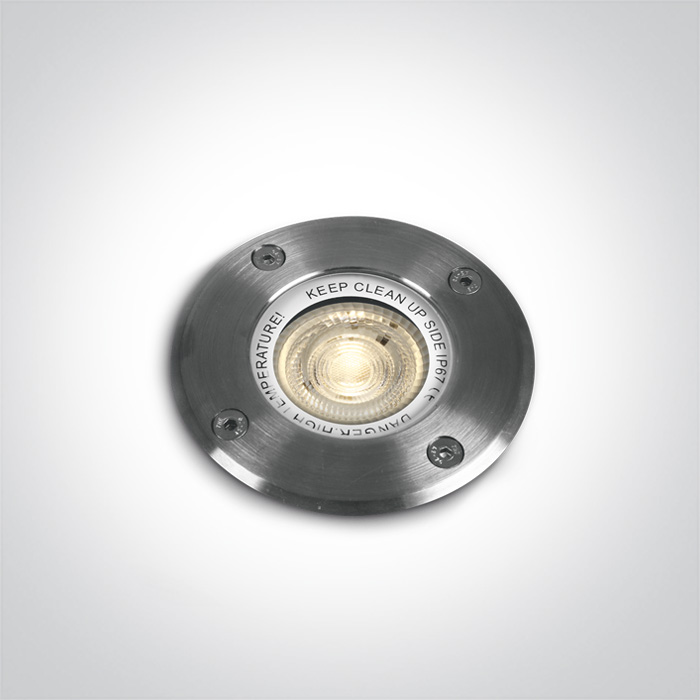

The GU10 Inground Range Stainless steel 316
10W Inground MR16 fitting with GU10 lampholder, IP67.
Complies with standard EN60598-1 and any other specific standards.
10W Inground MR16 fitting with GU10 lampholder, IP67.
Complies with standard EN60598-1 and any other specific standards.

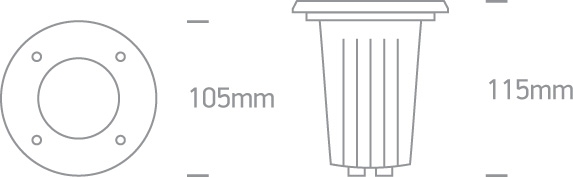

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The GU10 Inground Range Stainless steel 316
Order Code
69006G
Colour
Stainless Steel
Material
Stainless Steel 316
Shape
Circular
Height
115mm
Diameter
105mm
Cutout Hole Diameter
101mm
Inground
Yes
Depth Required
160mm+300mm drainage
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP67
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
11cm
Box Width
11cm
Box Height
15cm
Box Weight
0.650kg
Pcs/Carton
20
Barcode
5291889036425
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
