19 Wall Recessed & Inground > Outdoor Wall Recessed

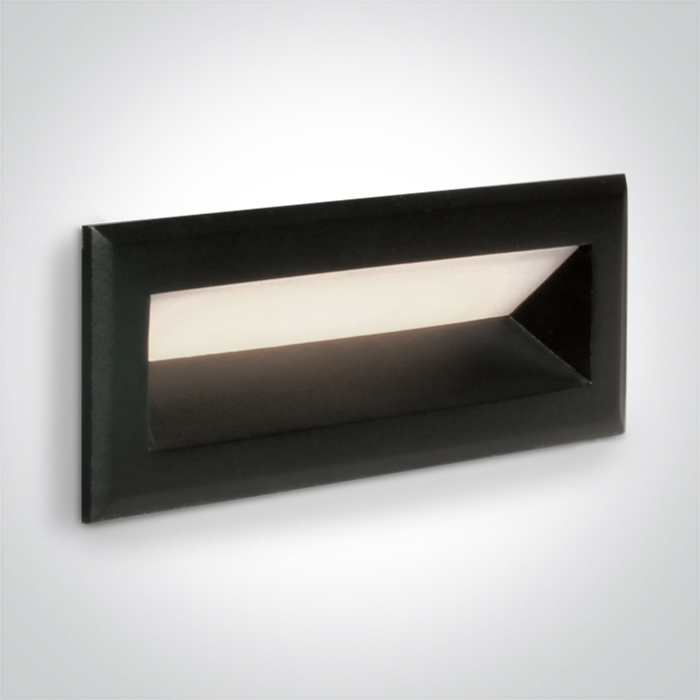

68080B/B/W
IP65 3W LED recessed wall light. Ideal for indoor and outdoor,
corridors and stairs illumination.
AC LED.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
AC LED.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.

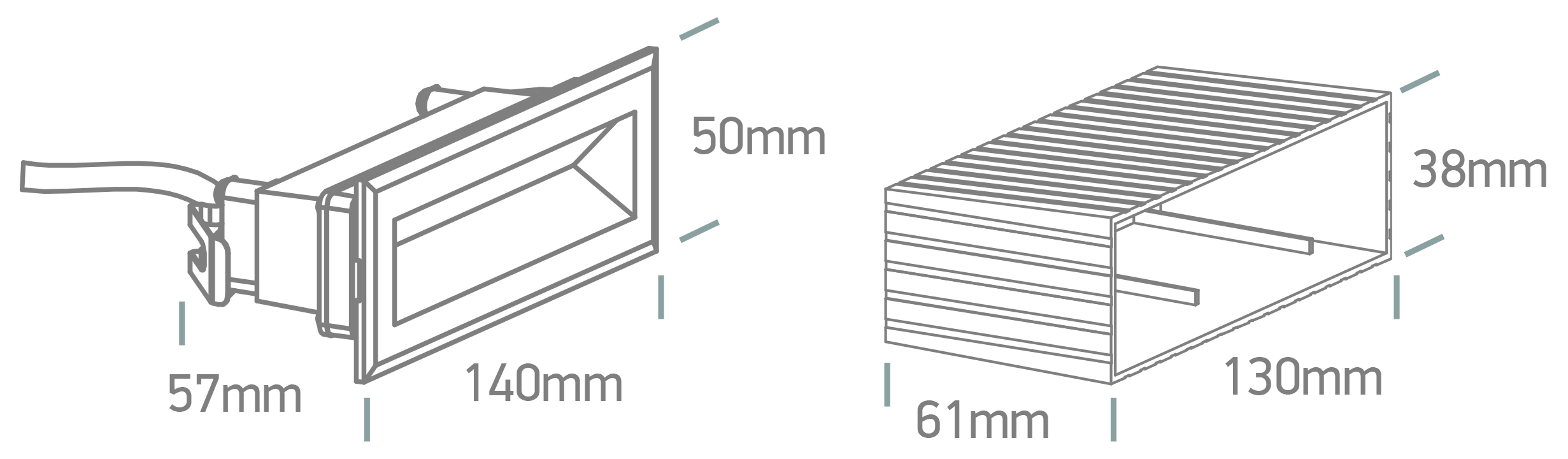

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Outdoor Wall Recessed
Order Code
68080B/B/W
Colour
Black
Material
ABS + PC
Shape
Rectangular
Length
140mm
Width
57mm
Height
50mm
Recessed wall
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
100cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
50lm/w
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.235kg
Pcs/Carton
40
Barcode
5291889076964
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
