18 Wall Recessed & Inground > Wall Recessed Pro Range

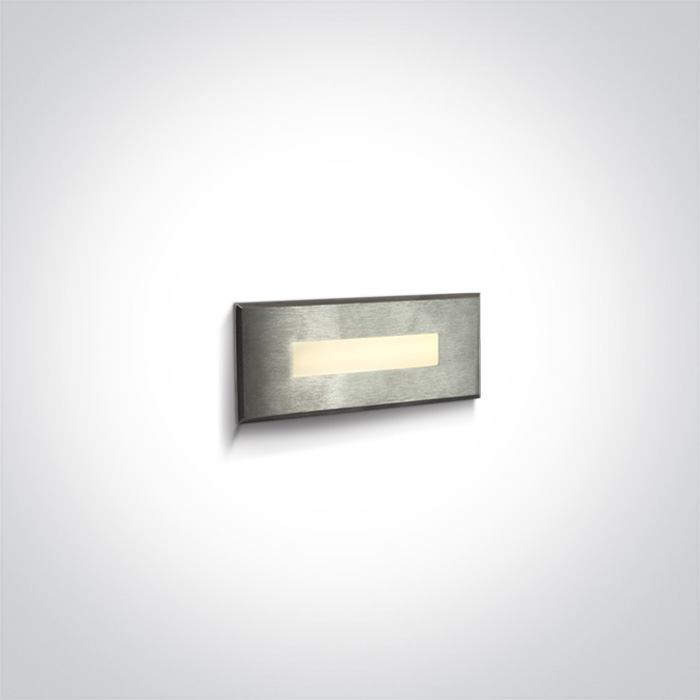

68072A/W
5W LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Complete 350mA driver.

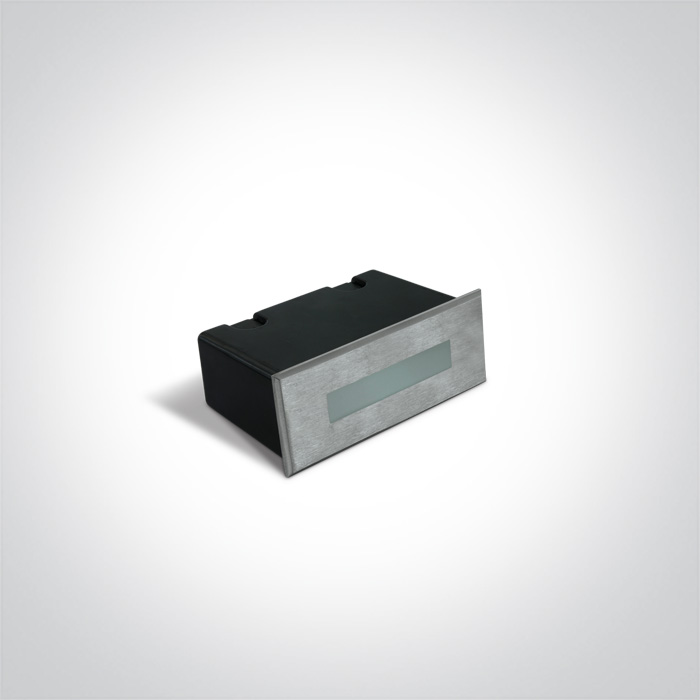

Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.

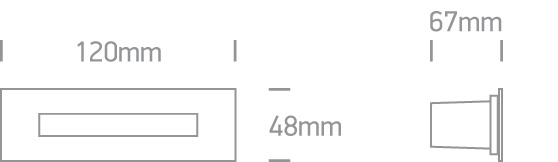

Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Wall Recessed Pro Range
Order Code
68072A/W
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Rectangular
Length
120mm
Width
48mm
Height
67mm
Cutout Hole Width
112mm
Cutout Hole Height
42mm
Recessed wall
Yes
Depth Required
75mm
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
5W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
12V
Safety Class
Power (Watts)
4,2W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-4W
Power Factor
0,5
Constant Current
Yes
350mA
3-12V
IP Rating
IP20
Safety Class
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
100lm
Light Efficiency
20lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
9,5cm
Box Width
5,5cm
Box Height
15cm
Box Weight
0.508kg
Pcs/Carton
24
Barcode
5291889057758
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
