19 Wall Recessed & Inground > Indoor/Outdoor Decorative Wall Recessed Aluminium
68070/W/W

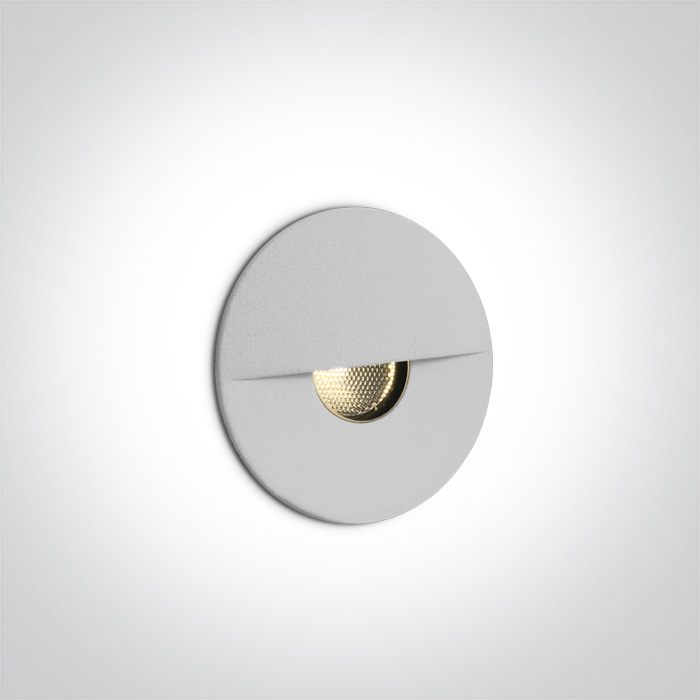

1W 350mA LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Requires 350mA driver.
Complete with installation box
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complete with installation box
Complies with standard EN60598-1 and any other specific standards.

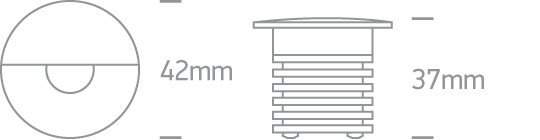

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Indoor/Outdoor Decorative Wall Recessed Aluminium
Order Code
68070/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
37mm
Diameter
42mm
Cutout Hole Diameter
30mm Gypsum / 35mm Concrete
Recessed wall
Yes
Depth Required
60mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
2,9V
Safety Class
Power (Watts)
1W
IP Rating
IP65
Light Source
LED built in
LED Brand
Osram
Cable Length
200cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
50lm
Light Efficiency
50lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
6,5cm
Box Width
6,5cm
Box Height
6,5cm
Box Weight
0.134kg
Pcs/Carton
100
Barcode
5291889057000
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
