18 Wall Recessed & Inground > Outdoor Dark Light Wall Recessed Die cast
68068A/AN/W

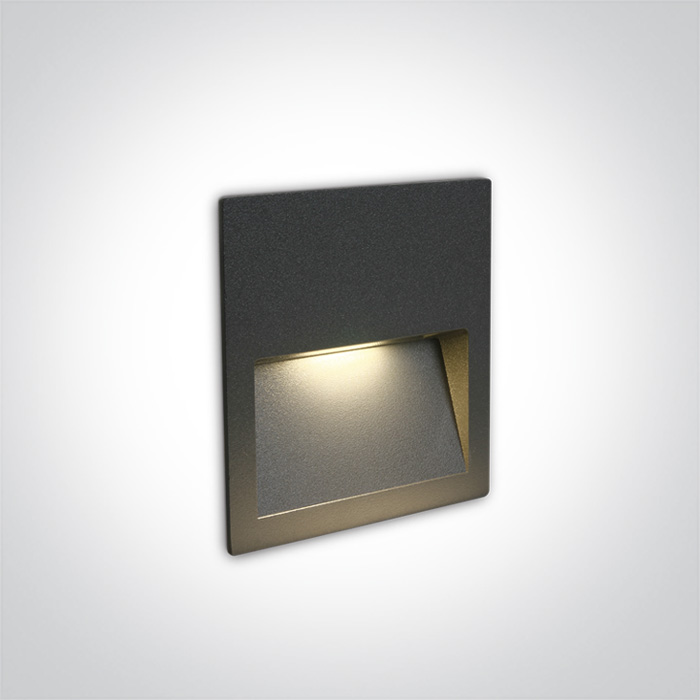

4W LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Outdoor Dark Light Wall Recessed Die cast
Order Code
68068A/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
115mm
Width
115mm
Height
35mm
Cutout Hole Width
110mm
Cutout Hole Height
110mm
Recessed wall
Yes
Depth Required
60mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
4W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
9V
Safety Class
Power (Watts)
3,15W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
LED Number
6
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-4W
Power Factor
0,5
Constant Current
Yes
350mA
3-10V
IP Rating
IP20
Safety Class
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
3000K
Lumen Output
300lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13cm
Box Width
7,5cm
Box Height
13cm
Box Weight
0.445kg
Pcs/Carton
24
Barcode
5291889049531
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
