18 Wall Recessed & Inground > Outdoor Dark Light Wall Recessed Die cast

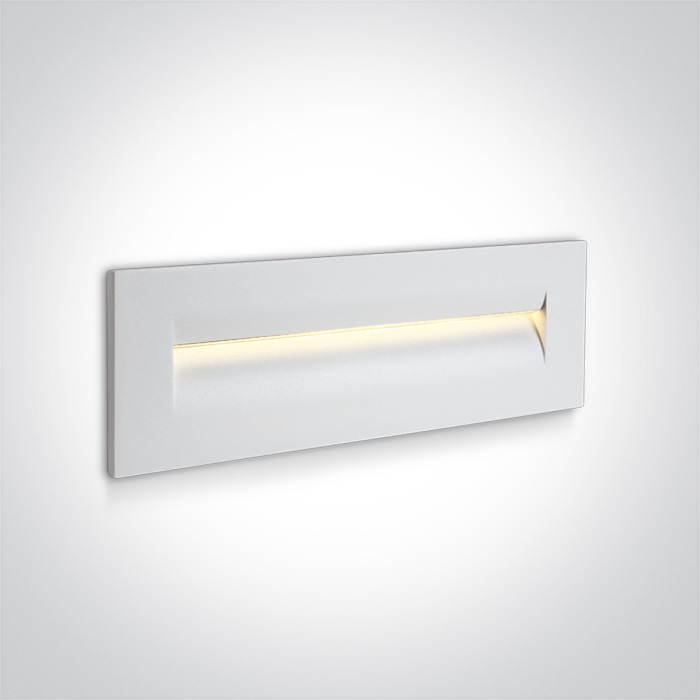

68066/W/W
8,5W LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Complete with 500mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Wall Recessed & Inground
Family
Outdoor Dark Light Wall Recessed Die cast
Order Code
68066/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
250mm
Width
87mm
Height
73mm
Cutout Hole Width
238mm
Cutout Hole Height
74mm
Recessed wall
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8,5W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
16V
Safety Class
Power (Watts)
8W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD
LED Brand
Philips
LED Number
40
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,25-9W
Power Factor
0,9
Constant Current
Yes
500mA
6,5-18V
IP Rating
IP20
Safety Class
Illumination Data
Colour Temperature
3000K
Lumen Output
160lm
Light Efficiency
18,82lm/W
CRI
80
Beam Angle
44°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11cm
Box Width
10,5cm
Box Height
27,5cm
Box Weight
0.916kg
Pcs/Carton
12
Barcode
5291889048183
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
