19 Wall Recessed & Inground > Outdoor Dark Light Wall Recessed Die cast

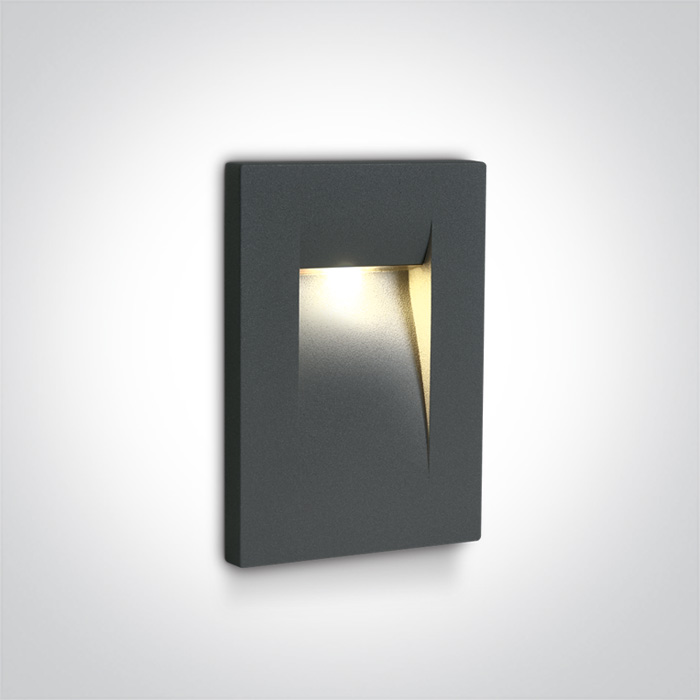

68062/AN/W
3,6W LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Complete with 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete with 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Outdoor Dark Light Wall Recessed Die cast
Order Code
68062/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
65mm
Width
107mm
Height
65mm
Cutout Hole Width
62mm
Cutout Hole Height
97mm
Recessed wall
Yes
Depth Required
65mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3,6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
9V
Safety Class
Power (Watts)
3W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD
LED Brand
Philips
LED Number
6
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-4W
Power Factor
0,5
Constant Current
Yes
350mA
3-10V
IP Rating
IP20
Safety Class
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
3000K
Lumen Output
100lm
Light Efficiency
27,78lm/W
CRI
80
Beam Angle
53°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13cm
Box Width
10cm
Box Height
10,5cm
Box Weight
0.437kg
Pcs/Carton
24
Barcode
5291889057468
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
