19 Wall Recessed & Inground > Indoor Square Wall Recessed
.jpg)

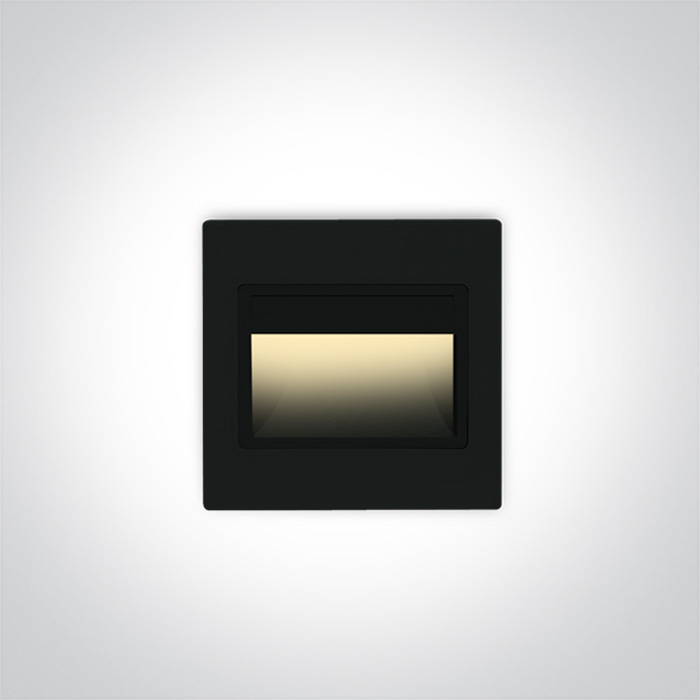

68007/B/W
1,5 W Wall recessed LED light, ideal for step and
corridor illumination.
Supplied complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Indoor Square Wall Recessed
Order Code
68007/B/W
Colour
Black
Material
Plastic
Shape
Rectangular
Length
94mm
Width
94mm
Height
35mm
Cutout Hole Width
86mm
Cutout Hole Height
86mm
Recessed wall
Yes
Depth Required
40mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
1,5W
IP Rating
IP20
Light Source
LED built in
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
1,5W
IP Rating
IP20
Light Source
LED built in
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1,5W
Power Factor
0,5
Constant Current
Yes
IP Rating
IP20
Safety Class
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
70lm
Light Efficiency
46,67lm/W
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9,7cm
Box Width
5,4cm
Box Height
9,7cm
Box Weight
0.158kg
Pcs/Carton
50
Barcode
5291889070603
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
