12 Wall & Ceiling LED > The Cube Wall Lights
67524B/AN/W
2x6W Outdoor Wall Cylinder, IP65.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.

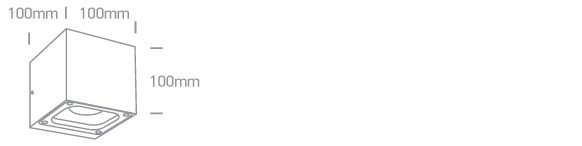

Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The Cube Wall Lights
Order Code
67524B/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
100mm
Width
100mm
Height
100mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
20V
Safety Class
Power (Watts)
10W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9-12W
Power Factor
0,5
Constant Current
Yes
500mA
18-24V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1000lm
Light Efficiency
83,33lm/W
CRI
80
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
1.000kg
Pcs/Carton
12
Barcode
5291889072829
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
