12 Wall & Ceiling LED > COB Outdoor Ceiling Cylinders

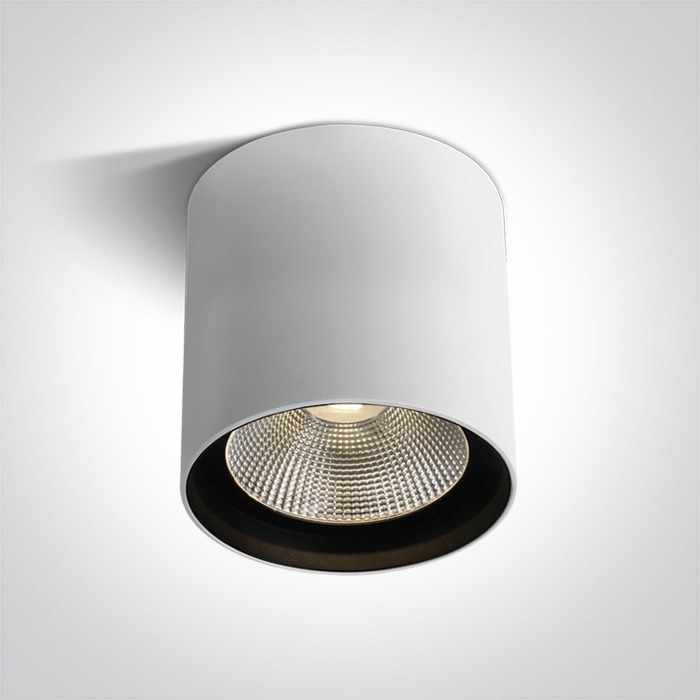

67516C/W/W
40W COB LED cylinder, IP65, suitable for indoor and outdoor
installation.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
COB Outdoor Ceiling Cylinders
Order Code
67516C/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
183mm
Diameter
160mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
34,17V
Power (Watts)
34,17W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
27-40W
Power Factor
0,9
Constant Current
Yes
1000mA
27-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
3200lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9cm
Box Width
9cm
Box Height
16cm
Box Weight
2.783kg
Pcs/Carton
6
Barcode
5291889070115
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
