19 Garden & Underwater > The Garden Square Spots

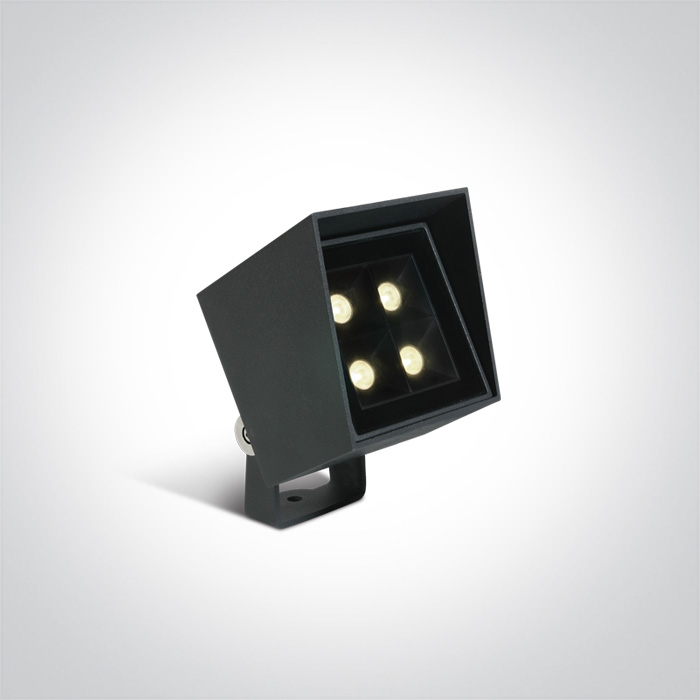

67514/AN/W
6W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

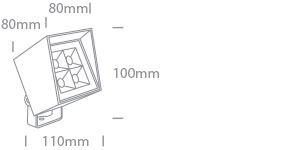

Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
The Garden Square Spots
Order Code
67514/AN/W
Colour
Anthracite
Material
Aluminium
Shape
Rectangular
Length
100mm
Width
80mm
Height
110mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
7
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
6V
Power (Watts)
4,2W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
LED Number
4
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2-6,3W
Power Factor
0,9
Constant Current
Yes
700mA
2,8-9V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
91,67lm/W
CRI
80
Beam Angle
30°
Illumination Diagram
Packing Info
Box Length
15,5cm
Box Width
9,5cm
Box Height
18cm
Box Weight
1.058kg
Pcs/Carton
12
Barcode
5291889069911
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
