New 2025 Edition 2 > Plafo
67498/W/V

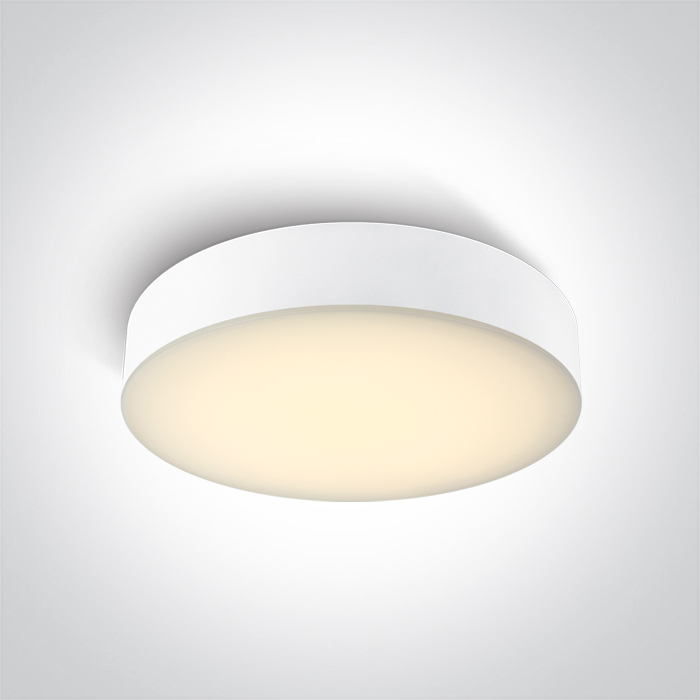

CCT Variable 20W LED Plafo, IP65, suitable for both indoor and outdoor
installations.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Plafo
Order Code
67498/W/V
Colour
White
Material
ABS + PC
Diffuser Material
PC
Shape
Circular
Height
62mm
Diameter
320mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
500mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6500K
Lumen Output
1300lm
Light Efficiency
65lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.460kg
Pcs/Carton
10
Barcode
5291889081586
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
