19 Garden & Underwater > Charging Sockets Bollards
67494A/AN/W

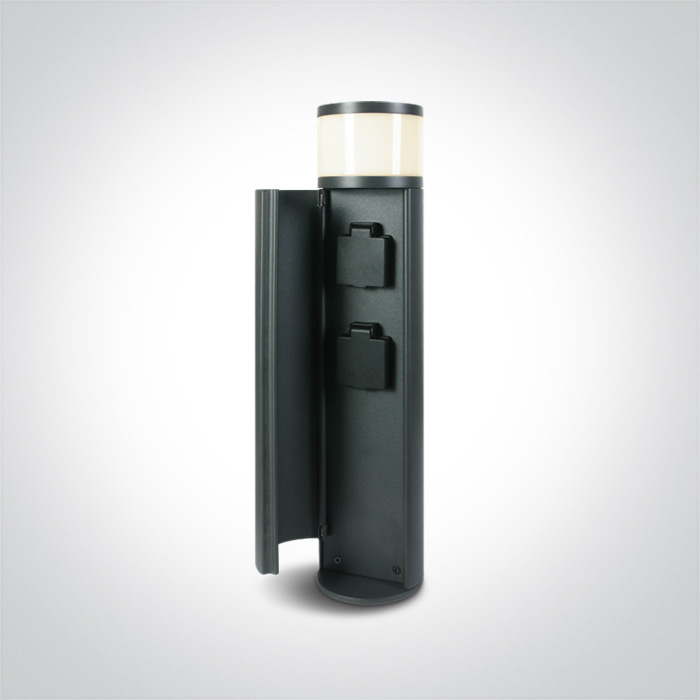

3W Bollard with 2x1000W Schuko Sockets , IP44.
Complete with 350mA driver
Complies with standard EN60598-1 and any other specific standards.
Complete with 350mA driver
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
Charging Sockets Bollards
Order Code
67494A/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
490mm
Diameter
100mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
5
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
8V
Power (Watts)
2,8W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 3014
LED Brand
Philips
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2,1-4,2W
Power Factor
0,9
Constant Current
Yes
350mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
240lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.075kg
Pcs/Carton
4
Barcode
5291889067092
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
